In this work, porous Ti6Al4V alloys with 30%-70% porosity for biomedical applications were fabricated by diffusion bonding of alloy meshes. Pore structure was characterized by Micro-CT and SEM. Compressive behavior in the out-of-plane direction and biocompatibility with cortical bone were studied. The results reveal that the fabricated porous Ti6Al4V alloys possess anisotropic structure with square pores in the in-plane direction and elongated pores in the out-of-plane direction. The average pore size of porous Ti6Al4V alloys with 30%-70% porosity is in the range of 240-360 µm. By tailoring diffusion bonding temperature, aspect ratio of alloy meshes and porosity, porous Ti6Al4V alloys with different compressive properties can be obtained, for instance, Young's modulus and yield stress in the ranges of 4-40 GPa and 70-500 MPa, respectively. Yield stress of porous Ti6Al4V alloys fabricated by diffusion bonding is close to that of alloys fabricated by rapid prototyping, but higher than that of fabricated by powder sintering and space-holder method. Diffusion bonding temperature has some effects on the yield stress of porous Ti6Al4V alloys, but has a minor effect on the Young's modulus. The relationship between compressive properties and relative density conforms well to the Gibson-Ashby model. The Young's modulus is linear with the aspect ratio, while the yield stress is linear with the square of aspect ratio of alloy meshes. Porous Ti6Al4V alloys with 60%-70% porosity have potential for cortical bone implant applications.
Titanium and its alloys, due to their superior mechanical properties, excellent corrosion resistance and good biocompatibility, have been widely used for bone replacement applications such as dental implants and some joint replacement parts[1], [2] and [3]. However, one of the main limitations that reduce the reliability of titanium implants in many cases is the mismatch of Young's modulus between solid titanium (about 110 GPa) and natural bone (less than 30 GPa)[4] and [5]. This mismatch of Young's modulus would lead to bone resorption and implant loosening resulted from the so-called “stress shielding” effect[4] and [6]. In order to reduce the “stress shielding” effect, a considerable amount of studies have been done to decrease the Young's modulus of titanium alloys, and an alternative approach is introduction of pore structure in titanium alloys[7], [8], [9], [10] and [11]. Interconnected pores in titanium and its alloys not only can solve problems associated with the “stress shielding” effect through tailoring porosity but also can enhance bone ingrowth and improve fixation[7], [12], [13] and [14]. Nevertheless, a critical issue about the application of porous titanium and its alloys to bone implants is the risk of decrease in mechanical strength[15]. Porous biomaterials for load-bearing applications should have mechanical strength that is able to withstand the physiological load without failure. For instance, compressive stress should be close to that of natural bone. Therefore, it is a challenge for porous titanium and its alloys to reach a desired compromise between strength and Young's modulus when adaptions of mechanical properties are used to bone implant applications.
Porous titanium and its alloys can be fabricated by different methods including powder sintering[16], [17] and [18], space holder method[9], [19], [20] and [21], freeze casting[22], [23], [24], [25] and [26] and rapid prototyping[8], [10], [27], [28], [29], [30] and [31]. Powder sintering is a convenient method to fabricate porous titanium, but the porosity of the fabricated porous titanium is lower than 40% and the yield stress is lower than that of the natural bone, as demonstrated by Oh et al.[18]. The freeze casting method enables porous biomaterials to have compressive strength close to that of natural bone, but its main drawback underlined by Yook et al. is that the pore size does not exceed 300 µm for a long manufacturing time of 7 days[24] and [32]. Porous titanium with larger pore size can be fabricated by space holder method but it is difficult to ensure all the space-holders such as NaCl and NH4HCO3 to be removed from the sample. In recent years, rapid prototyping has been paid much attention for fabricating porous titanium. Rapid prototyping is a flexible method which includes selective laser melting (SLM)[10], [33] and [34] and selective electron beam melting (SEBM)[35], [36], [37] and [38]. This fabrication processing has better control of the pore structure such as porosity, pore size and morphology. However, the fabricated porous titanium and its alloys sometimes have defects such as unmelted powders, internal porosity and high notch sensitivity which may deteriorate the mechanical properties[10] and [39].
In the present work, anisotropic porous Ti6Al4V alloys with 30%-70% porosity and different pore sizes were fabricated by diffusion bonding of alloy meshes. Compressive behavior of porous Ti6Al4V alloys in the out-of-plane direction was studied. The definition of out-of-plane and in-plane directions can be found in Refs. [13] and [40]. The relationship among diffusion bonding temperature, porosity, pore size and compressive properties was discussed based on the compressive deformation mode. Porous Ti6Al4V alloys having potential for cortical bone implant applications were provided through adaption of compressive properties.
2. Materials and Methods
2.1. Fabrication of porous Ti6Al4V alloys
Porous Ti6Al4V alloys were fabricated by diffusion bonding of Ti6All4V alloy meshes. Three types of alloy meshes (marked as Types I, II and III) were used as starting materials, as shown in Fig. 1. Table 1 gives pore structure parameters, including pore size, wire diameter and aspect ratio, of these three types of alloy meshes. Before diffusion bonding, the mesh surface was treated by acid solution. Certain numbers of surface-treated meshes were regularly stacked layer by layer to form a rectangular sample. Then the sample was placed in the furnace of diffusion bonding equipment. Four different diffusion bonding temperatures including 850, 900, 950 and 970 °C were adopted in the experiment. The holding time at each diffusion bonding temperature was 1.5 h. The vacuum pressure was maintained about 6.6 × 10-3 Pa during the diffusion bonding process. More details about the fabrication process can be found in Refs. [13] and [40]. Porous Ti6Al4V alloys with 30%-70% porosity and different pore sizes were fabricated by using the above process.
Fig. 1.
SEM images showing pore structure of three types of Ti6Al4V alloy meshes: (a) Type I; (b) Type II; (c) Type III.
Table 1
Table 1
Pore structure parameters of three types of Ti6Al4V alloy meshes
Type
Pore size, L/µm
Wire diameter, D/µm
Aspect ratio (D/L)a
I
900
200
0.22
II
650
200
0.31
III
400
80
0.20
aAspect ratio of titanium mesh means the ratio of wire diameter to length in a single pore. Wire length in a single pore is equal to pore size.
Table 1
Pore structure parameters of three types of Ti6Al4V alloy meshes
2.2. Structure characterization
Porous Ti6Al4V samples were scanned by a Micro-CT scanner (Siemens Inveon) with a slice of 10 µm. The output format of Micro-CT scanning was 512 × 512 pixels image in DICOM format with an isotropic voxel. Based on the Micro-CT results, the pore size of porous samples was calculated by a reconstruction software of Mimics 14.11. More details of the calculation process can be found in Ref. [13]. Scanning electron microscopy (SEM, JEOL-JSM6330F) was also used to clearly characterize the pore structure. The porosity (P) of porous Ti6Al4V samples was calculated by mass-volume method with Eq. (1).
where M and V are the mass and volume of porous Ti6Al4V alloy, respectively. ρs is the density of solid Ti6Al4V alloy.
Microstructure of porous Ti6Al4V alloys fabricated at different diffusion bonding temperatures is observed by optical microscopy (Olympus, Japan). Average grain size is calculated by lineal intercept procedure based on the optical microscopy image of porous Ti6Al4V alloys.
2.3. Compression test
Uniaxial compression tests were carried out on a screw-driven load frame (MTS SYSTEMS) with a strain rate of 10-3 s-1. Young's modulus and yield stress were calculated from the nominal compressive stress-strain curves. All the testing samples were carefully cut from the fabricated porous Ti6Al4V alloy by electrical discharge machining. At least three compression tests were conducted for each case. The compressive behavior and deformation mode in the out-of-plane direction were discussed according to the compressive stress-strain curves and SEM observation of the deformed samples.
3. Results and Discussion
3.1. Pore structure
Porous Ti6Al4V alloys with 70% porosity fabricated by diffusion bonding using type II meshes are shown in Fig. 2. Obviously, the porous sample has anisotropic and homogenous structure. As displayed in Fig. 2(b) and (c), the pore shape is elongated and square in the out-of-plane and in-plane directions, respectively. Previous studies on biocompatibility of porous biomaterials have indicated that elongated pores are more similar to the anisotropic bone structure and can reduce “stress shielding” effect more efficiently than equiaxed pores[41] and [42]. Therefore, it is indicated that present porous Ti6Al4V alloys with elongated pores possess suitable pore structure for bone implant applications. Fig. 2(d) shows mesh hinges formed during diffusion bonding. There are no cracks or other defects in the mesh hinges and the surface of mesh wires is clean, which indicates that excellent bonding force is formed between meshes. The pore size distribution of porous Ti6Al4V alloys fabricated with type II meshes is displayed in Fig. 3. The average pore size for porous Ti6Al4V alloys with 30%-70% porosity is in the range of 240-360 µm. For the 30% porosity, more than 40% pores are in the range of 200-500 µm. With increase in porosity, pore size distribution becomes wider and more than 70% pores are in the range of 200-500 µm for porous Ti6Al4V alloys with 70% porosity. Previous studies on biocompatibility of porous biomaterials have shown that pore size in the range of 200-500 µm is more suited for bone ingrowth into pore structure[7] and [43]. It is indicated that present Ti6Al4V alloys possess porous structure for bone implant applications.

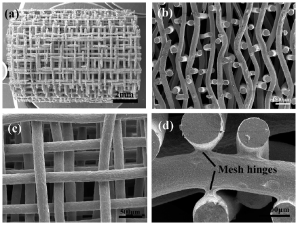

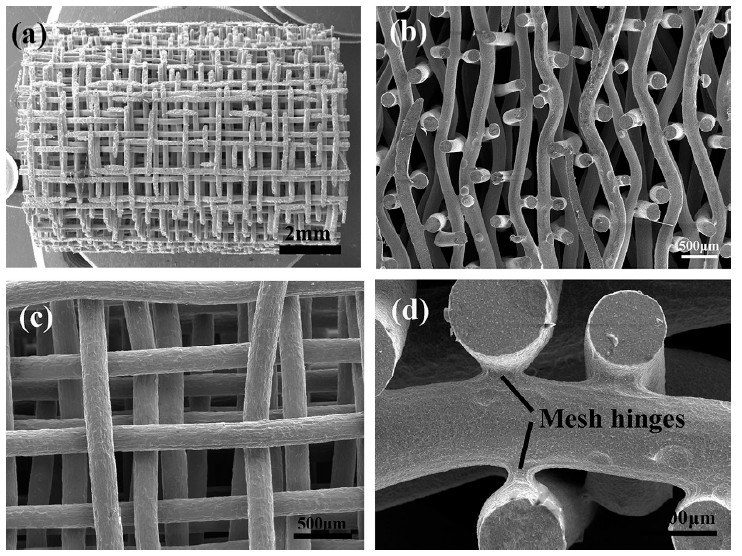

Fig. 2.
Porous Ti6Al4V alloy with 70% porosity fabricated by diffusion bonding using type II meshes (a); representative SEM images in the out-of-plane (b) and in-plane (c) directions; Mesh hinges formed during diffusion bonding (d).

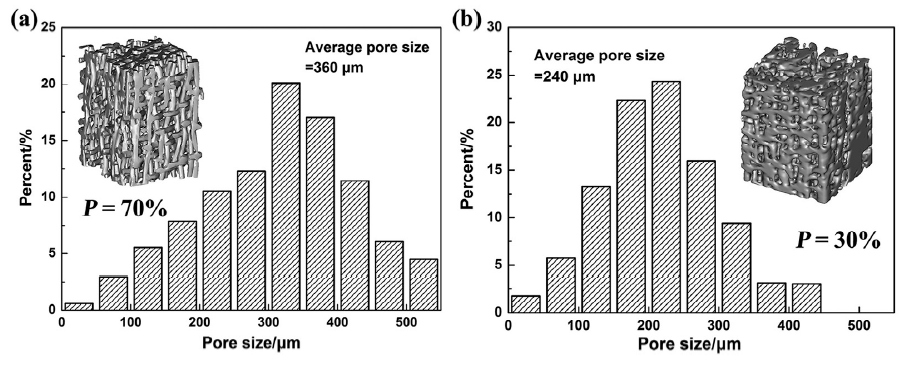

Fig. 3.
Pore size distribution of porous Ti6Al4V alloys fabricated using Type II meshes: (a) 70% porosity; (b) 30% porosity. The inserted graphs represent the reconstructed 3D model from Micro-CT scan for calculating pore size.
3.2. Compressive behavior
Fig. 4 shows nominal compressive stress-strain curves in the out-of-plane direction for porous Ti6Al4V alloys fabricated by type II meshes. It is obvious that features of stress-strain curves are different for different porosity. As the porosity is lower than 50%, the stress-strain curves exhibit four deformation regions: an initial linear-elastic region, a region with slow increase in stress, a plateau region with sharp fluctuation in stress and a final densification region. However, when the porosity is higher than 50%, stress-strain curves consist of a yield point after the initial linear-elastic region. The stress-strain curves exhibit four deformation regions: a linear-elastic region, a region with sharp decrease in stress after a peak point, a plateau region and a final densification region. Fig. 4 also shows images of porous Ti6Al4V samples after compression. It is obvious that the dominant compressive deformation mode is buckling of alloy meshes for porous Ti6Al4V alloy compressed in the out-of-plane direction. For porous Ti6Al4V alloys with 30% porosity, there is some uncoordinated buckling deformation during compression, as shown in Fig. 4(b). It is believed that the uncoordinated buckling deformation has resulted from the pore structure of porous Ti6Al4V alloys. For porous Ti6Al4V alloys with porosity lower than 50%, there are some misaligned mesh wires in the out-of-plane direction. This misaligned structure hinders the coordinated buckling deformation of alloy meshes and some uncoordinated buckling appears during compression. In addition, as shown in Fig. 4, there are much more fluctuations in the stress-strain curves for porous Ti6Al4V alloys compared with those for the porous titanium fabricated by the same method in Ref. [13]. This is believed to be related with the brittleness of Ti6Al4V alloys.

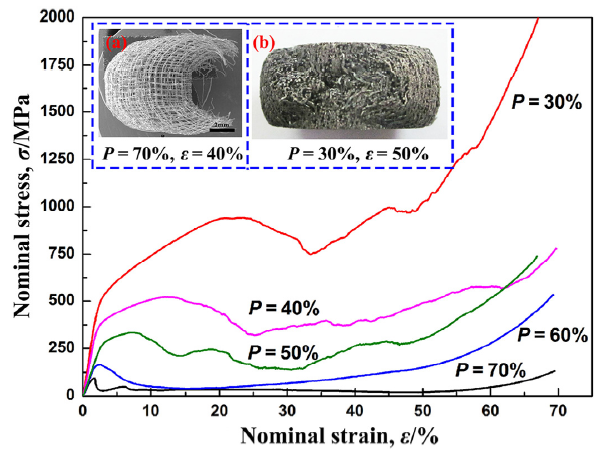

Fig. 4.
Nominal compressive stress-strain curves in the out-of-plane direction for porous Ti6Al4V alloys fabricated at 950 °C using Type II meshes. The insert graphs show images of porous Ti6Al4V samples after compression: (a) 70% porosity at 40% nominal strain; (b) 30% porosity at 50% nominal strain.
3.3. Adaption of compressive properties
3.3.1. Adaption of compressive properties by diffusion bonding temperature

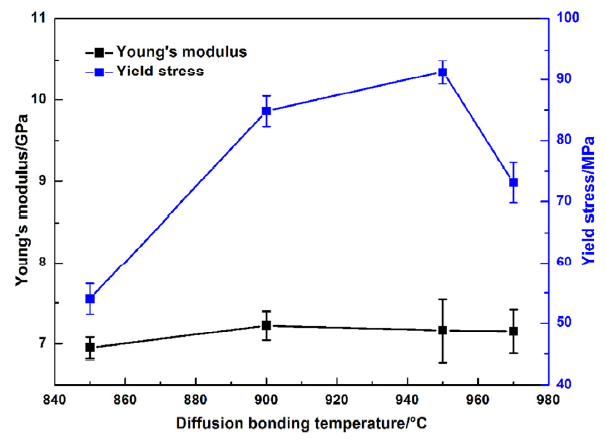

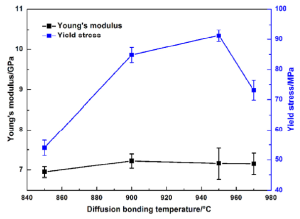

The relationship between diffusion bonding temperature and compressive properties of porous Ti6Al4V alloys with 70% porosity is plotted in Fig. 5. Diffusion bonding temperature has a minor effect on the Young's modulus of porous Ti6Al4V alloys. However, diffusion bonding temperature has some effects on the yield stress. Porous Ti6Al4V alloys fabricated at 950 °C have higher yield stress in comparison with other diffusion bonding temperature. This is related with the element diffusion and microstructure of porous Ti6Al4V alloys. When the diffusion bonding temperature is below 850 °C, the element diffusion in the interface is insufficient and the interfacial strength of mesh hinges is low. With the increase in diffusion bonding temperature, the element diffusion becomes sufficient, leading to the increase in strength of mesh hinges. However, when the diffusion bonding temperature increases to 970 °C, the grains in the alloy meshes grow up and the grain size significantly increases. Fig. 6 is the microstructure of mesh hinges at different diffusion bonding temperatures. The microstructure of porous Ti6Al4V alloys fabricated at different diffusion bonding temperatures consists of equiaxed α and β matrix. With increase in diffusion bonding temperature, the size of equiaxed α increases. When the diffusion bonding temperature increases from 850 °C to 970 °C, the size of equiaxed α increases by about 1.4 times, which significantly decreases the strength of mesh hinges. Therefore, yield stress is higher for porous Ti6Al4V alloys fabricated at 950 °C.

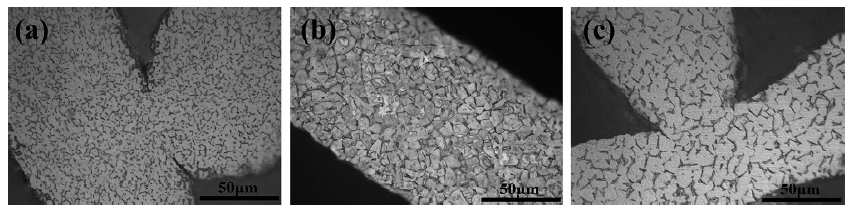

Fig. 6.
Microstructure of porous Ti6Al4V alloys fabricated by Type II meshes at different diffusion bonding temperatures: (a) 850 °C, (b) 950 °C and (c) 970 °C.
3.3.2. Adaption of compressive properties by porosity
In order to develop porous biomaterials for bone implant applications, the relationship between compressive properties and relative density should be quantitatively established. Gibson et al. have studied in detail the mechanical properties of cellular solids and established the Gibson-Ashby model to illustrate the relationship between compressive properties and relative density[44]. The Gibson-Ashby model can be expressed as follows in logarithmic form:
where E, σy and (ρ/ρs) are Young's modulus, yield stress and relative density of porous metals, respectively. Es and σys are Young's modulus and yield stress of solid metals, respectively. C1 and C2 are constants related to materials. n1 and n2 are exponents related to pore structure.
The relationship between compressive properties and relative density for porous Ti6Al4V alloys fabricated at 950 °C using Type II meshes is shown in Fig. 7. For present solid Ti6Al4V alloys, the Young's modulus (Es) and yield stress (σys) are 122 GPa and 980 MPa, respectively[11]. Obviously, both Young's modulus and yield stress increase with increasing relative density. For porous Ti6Al4V alloys with 30%-70% relative density, Young's modulus and yield stress are in the ranges of 7-40 GPa and 90-500 MPa, respectively. Previous studies on compressive properties of cortical bone show that the compressive Young's modulus and yield stress of cortical bone are in the ranges of 5-25 GPa and 50-250 MPa, respectively, as shown in Fig. 7[45]. It is obvious that compressive properties of porous Ti6Al4V alloys with 60%-70% porosity are in the range of corresponding properties of cortical bone. By fitting the data with Eqs. (2) and (3), exponents of n1 and n2 are equal to 1.95 and 1.96, respectively. The relationship between compressive properties and relative density of porous Ti6Al4V alloys conforms well to Gibson-Ashby model, which indicates that Young's modulus and yield stress can be tailored by relative density to match those of the cortical bone.

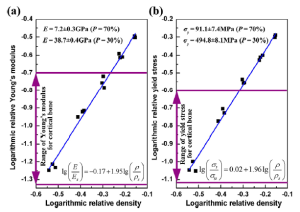

Fig. 7.
Relationship between compressive properties and relative density for porous Ti6Al4V alloys fabricated at 950 °C using Type II meshes: (a) Young's modulus; (b) yield stress.
Yield stress of porous titanium and Ti6Al4V alloys fabricated by diffusion bonding and other methods are compared in Fig. 8. The data in Fig. 8 corresponding to diffusion bonding are the yield stress for porous Ti6Al4V alloys fabricated at 950 °C using Type II meshes. For better comparison between different materials, yield stress of porous titanium and Ti6Al4V alloys is divided by the yield stress of corresponding solid titanium or Ti6Al4V alloys. The Young's modulus (Es) and yield stress (σys) of solid titanium are 110 GPa and 480 MPa, respectively[46]. As can be seen in Fig. 8, the yield stress fabricated by diffusion bonding is close to that of by rapid prototyping such as selective laser net shaping (SLNS), selective electron beam melting (SEBM) and selective laser melting (SLM), but higher than that of by powder sintering and space holder. The higher yield stress for present porous Ti6Al4V alloys has resulted from the following two aspects: (i) the structure of mesh hinges formed during the process of diffusion bonding. As shown in Fig. 2 and Fig. 6, there are no cracks or other defects in the mesh hinges, which indicates that excellent bonding force is formed between meshes; (ii) since diffusion bonding is a solid state fabrication process, there are no defects such as impurities, inclusions or other metallurgical defects formed in the porous Ti6Al4V alloys. Therefore, present porous titanium fabricated by diffusion bonding has higher yield stress.

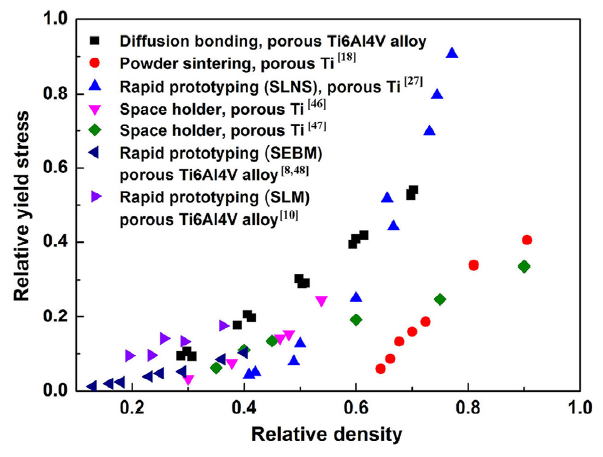

Fig. 8.
Comparison of yield stress for porous titanium and porous Ti6Al4V alloys fabricated by different methods[8], [10], [18], [27], [46], [47] and [48].
3.3.3. Adaption of compressive properties by pore size
Compressive properties of porous Ti6Al4V alloys fabricated at 950 °C using different types of alloy meshes are shown in Fig. 9. Both yield stress and Young's modulus of porous Ti6Al4V alloys fabricated by type II meshes are higher than those of by type I and III meshes. The higher compressive properties of porous Ti6Al4V alloys fabricated by type II meshes are associated with the aspect ratio of alloy meshes. As discussed in Section 3.2, the dominant deformation mode is buckling of alloy meshes during compression. When a beam is experiencing buckling deformation, according to beam theory[44] and [49], Young's modulus (E) is linear with aspect ratio (D/L) of the beam, which can be expressed as:

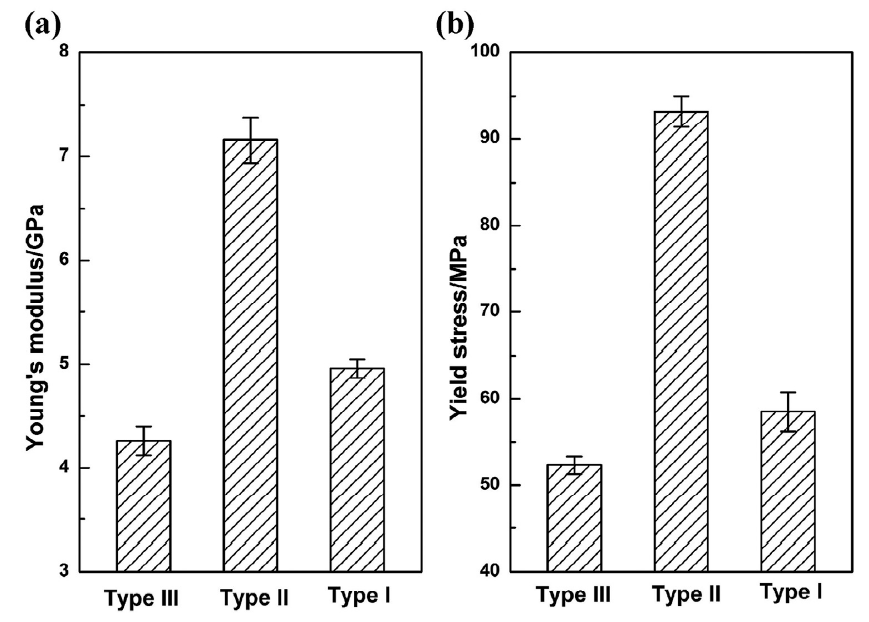

Fig. 9.
Compressive properties of porous Ti6Al4V alloys fabricated at 950 °C using three types of meshes: (a) Young's modulus; (b) yield stress.
And yield stress (σy) is linear with square of aspect ratio, which can be expressed as:
Table 1
Table 1
shows the aspect ratio of three types of Ti6Al4V alloy meshes. Relationship between compressive properties of porous Ti6Al4V alloys and aspect ratio of alloy meshes is plotted in Fig. 10. It is obvious that Young's modulus is linear with aspect ratio and yield stress is linear with square of aspect ratio, which conforms well to Eqs. (4) and (5). It is indicated that the effect of pore size on compressive properties of porous Ti6Al4V alloys fabricated by diffusion bonding is ascribed to the aspect ratio of alloy meshes.
Table 1
shows the aspect ratio of three types of Ti6Al4V alloy meshes. Relationship between compressive properties of porous Ti6Al4V alloys and aspect ratio of alloy meshes is plotted in Fig. 10. It is obvious that Young's modulus is linear with aspect ratio and yield stress is linear with square of aspect ratio, which conforms well to Eqs. (4) and (5). It is indicated that the effect of pore size on compressive properties of porous Ti6Al4V alloys fabricated by diffusion bonding is ascribed to the aspect ratio of alloy meshes.

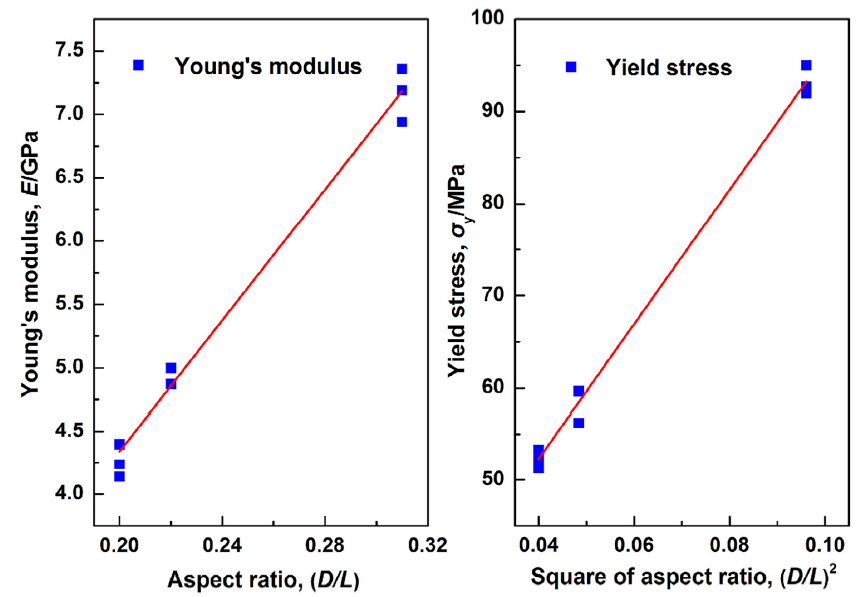

Fig. 10.
Relationship between compressive properties and aspect ratio of meshes for porous Ti6Al4V alloys with 70% porosity fabricated at 950 °C.
4. Conclusions
Porous Ti6Al4V alloys with 30%-70% porosity for biomedical applications were fabricated by diffusion bonding of alloy meshes. Compressive behaviors in the out-of-plane direction and biocompatibility with cortical bone were studied. The main conclusions are as follows.
(a)Porous Ti6Al4V alloys fabricated by diffusion bonding possess anisotropic pore structure which is square and elongated pores in the in-plane and out-of-plane directions, respectively. The average pore size of porous Ti6Al4V alloys with 30%-70% porosity is in the range of 240-360 µm. The dominant deformation mode of porous Ti6Al4V alloys compressed in the out-of-plane direction is buckling of alloy meshes.
(b)Diffusion bonding temperature has some effects on the yield stress of porous Ti6Al4V alloys, but has a minor effect on the Young's modulus. Porous Ti6Al4V alloys fabricated at 950 °C have higher yield stress. Yield stress of porous Ti6Al4V alloys fabricated by diffusion bonding is close to that of alloys fabricated by rapid prototyping, but higher than that of fabricated by powder sintering and space-holder method.
(c)Young's modulus and yield stress of porous Ti6Al4V alloys can be tailored by relative density based on the Gibson-Ashby model to match those of the cortical bone. The effect of pore size on compressive properties of porous Ti6Al4V alloys is related with the aspect ratio of alloy meshes. The Young's modulus is linear with the aspect ratio, while the yield stress is linear with the square of aspect ratio of alloy meshes. Porous Ti6Al4V alloys with 60%-70% porosity have potential for cortical bone implant applications.
Acknowledgment
This work was supported by the National Basic Research Program of China (No. 2012CB619101).
The authors have declared that no competing interests exist.
