Journal of Materials Science & Technology, 2016, 32(9): 889-900
doi: 10.1016/j.jmst.2016.01.007
3D Bioplotting of Gelatin/Alginate Scaffolds for Tissue Engineering: Influence of Crosslinking Degree and Pore Architecture on Physicochemical Properties
Ting Pan1,2,3, Wenjing Song1,2,3,*,, Xiaodong Cao1,2,3, Yingjun Wang1,2,3,*,
1 Department of Biomedical Engineering, School of Materials Science and Engineering, South China University of Technology, Guangzhou 510641, China
2 National Engineering Research Center for Tissue Restoration and Reconstruction, Guangzhou 510006, China
3 Guangdong Province Key Laboratory of Biomedical Engineering, South China University of Technology, Guangzhou 510006, China
* Corresponding authors. Ph.D.; Tel.: +86 20 22236066; Fax: +86 20 87111752.E-mail addresses: shaner_swj@163.com (W. Song); imwangyj@163.com (Y.Wang).
Abstract:

Gelatin/Alginate hydrogels were engineered for bioplotting in tissue engineering. One major drawback of hydrogel scaffolds is the lack of adequate mechanical properties. In this study, using a bioplotter, we constructed the scaffolds with different pore architectures by deposition of gelatin/alginate hydrogels layer-by-layer. The scaffolds with different crosslinking degree were obtained by post-crosslinking methods. Their physicochemical properties, as well as cell viability, were assessed. Different crosslinking methods had little influence on scaffold architecture, porosity, pore size and distribution. By contrast, the water absorption ability, degradation rate and mechanical properties of the scaffolds were dramatically affected by treatment with various concentrations of crosslinking agent (glutaraldehyde). The crosslinking process using glutaraldehyde markedly improved the stability and mechanical strength of the hydrogel scaffolds. Besides the post-processing methods, the pore architecture can also evidently affect the mechanical properties of the scaffolds. The crosslinked gelatin/alginate scaffolds showed a good potential to encapsulate cells or drugs.
Key words: Bioplotting; Tissue engineering; Scaffolds; Gelatin; Alginate;
1. Introduction

An implant of mimicking natural tissue structure is crucial for tissue engineering and regenerative medicine[1]. The traditional strategy of an artificial implant production is cell-seeded polymeric scaffolds, which is the most widely used[2] and [3]. However, scaffold manufacturing technologies face a challenge that achieves a high level of control over three-dimensional (3D) structure of scaffolds with incorporation of cells during the fabrication process[2] and [4]. In the late 1980s, rapid prototyping (RP) technology was born, which could quickly fabricate a scale model of a physical part or assembly on the basis of a pre-designed computer-assisted design (CAD) model[5]. Bioplotting is one of the RP technology for cell/organ printing, which can print live cells encapsulated in hydrogels with controlled architecture and defined cell placement in the mild condition[6]. This emerging technique can solve many problems that solid scaffold-based strategy has to face and become a powerful tool to mimic many natural tissue structures[7].

Selecting a suitable scaffold material to encapsulate and print live cells is a key of bioplotting[8]. Hydrogels are polymeric networks with a highly hydrated microenvironment, which makes it possible to permit easy transport of nutrients and oxygen, removal of waste products, and present bioactive stimuli that can influence cellular process[9] and [10]. Consequently, hydrogels become the most suitable materials for bioplotting, which can encapsulate cells in a 3D environment similar to that of many natural tissues[11] and [12]. Up to now, many nature derived or synthetic hydrogels, including alginate[13], collagen[14], gelatin[13] and [15] and Lutrol F127 Alal[16] have been used as scaffold materials. Sodium alginate, the seaweed-derived carbohydrate, is widely used to form hydrogels after ionotropic cross-linking with Ca2+ for drug delivery, cell encapsulation, and tissue regeneration, because Ca2+ crosslinked alginate is biocompatible and does not damage cells during the gelling process[17]. Gelatin, the denatured collagen, is widely used for drug delivery, gene delivery and tissue engineering[18], [19] and [20]. Since gelatin is sensitive to temperature changes, it can be suitable for depositing layer by layer through a sol-gel transformation. Recently, the combination of gelatin and alginate for bioplotting was widely attempted because of chemical similarity to the extra cellular matrix (ECM)[13].

However, one major drawback of gelatin/alginate hydrogels is the lack of adequate mechanical strength[21]. Therefore, many attempts have been carried out to improve the stability and mechanical properties of the hydrogel scaffolds. Chemical crosslinking is a popular and convenient approach to enhance the mechanical strength of the bioplotted hydrogel scaffolds. It is generally accepted that glutaraldehyde (GTA) is a good choice for cross-linking collagen-based biomaterials, because GTA is inexpensive, easily available and can effectively crosslink collagenous tissues quite rapidly[22]. Bigi et al.[23] studied that increasing the concentrations of GTA solutions can affect the mechanical, thermal, swelling and release properties of GTA crosslinked gelatin films. Most researches have been investigated previously using gelatin films and gels. However, as far as we know, the effect of GTA crosslinking on gelatin/alginate hydrogels has not previously been demonstrated on 3D porous scaffolds.

Herein, this paper aims to make a preliminary attempt to develop a gelatin/alginate system to generate 3D scaffolds with desired structure by bioplotting technique. The influence of crosslinking process and pore architecture on properties of scaffolds were studied, and the most appropriate post-processing methods and structure was discussed. Crosslinking process using GTA highly improved the stability and mechanical stiffness of the gelatin/alginate scaffolds. This kind of scaffold may have a potential to encapsulate cells or drugs.

2. Experimental
2.1. Hydrogel preparation

High-viscosity biochemical-grade sodium alginate (biochemical grade, Mw  = 398.3, Aladdin) was dissolved in ultrapure water (0.04 g/mL) under constant stirring at room temperature. Then 0.2 g/mL gelatin (for microbiology, gel strength ~ 250 g, Aladdin) was dissolved into alginate solution under constant stirring at 50 °C.

2.2. Bioplotting of gelatin/alginate scaffolds

The 3D scaffolds were manufactured from gelatin/alginate gel with a Bioplotter device (Envisiontec GmbH, Germany). First, a 10 mm × 10 mm × 2 mm rectangular block model was designed by a software package (Magics X, Materialise Software) and loaded on the Bioplotter computer-aided manufacturing (CAM) software. Then, the gel was loaded into a dispensing unit consisting of a cartridge and a nozzle (400 µm) and heated at 37 °C through a thermostatic cartridge unit. When the sol phase was attained, a nitrogen gas pressure of 2 × 104 Pa (0.2 bar) was applied to the syringe through a pressurized cap, and the rectangular blocks were plotted in a layer by layer manner for 7 layers. The plotting speed was set as 2 mm/s, and the spacing between two deposited fibers was 400 µm. To maintain the shape of the deposited fibers and the structure of the whole scaffolds, the fibers should solidify quickly after dispensing. The platform temperature was set as 5 °C, thus the gelling speed of the thermally reversible gelatin hydrogel could be quick enough to maintain the structure. To study the influence of pore architecture on the final performance of scaffolds, we designed two different manners of fiber deposition. The architecture was changed by plotting fibers with 60° and 90° angle steps between two successive layers (called 0-60 and 0-90 configurations, respectively).

2.3. Post-processing methods

To improve the stability and mechanical stiffness of the bioplotted scaffolds, the alginate was crosslinked with CaCl2, and the gelatin was crosslinked with glutaraldehyde (GTA, 25 wt%, Chengdu Kelong Chemical, China). First, all scaffolds were soaked in 5 wt% CaCl2 for 10 min, and then in GTA solution for 30 min. To study the influence of post-processing on scaffolds, GTA cross linker with different concentrations (0, 0.25, 1 and 2.5 wt%) was applied. After crosslinking, scaffolds were washed with ddH2O three times, and then soaked in glutamic acid to remove the remaining GTA. Finally, scaffolds were lyophilized at -20 °C for 48 h.

2.4. Fourier-transform infrared spectroscopy

A Fourier-transform infrared (FTIR) spectrometer (Nexus Por Euro, Bruker, Germany) was used for measuring the cross-linkage of sodium alginate and gelatin. FTIR spectra represent the average of 30 scans between 400 cm-1 and 4000 cm-1 at a resolution of 8 cm-1.

2.5. Structure analysis of wet and dried scaffolds

To illustrate the structure and architecture of wet scaffolds, hydrogels were labeled with fluorescein isothiocyanate (FITC, Dojindo Laboratories, Japan). The bioprinted FITC-hydrogel scaffolds were observed under an inverse fluorescent microscope (40FL Aiokop, Zeiss, Germany) without lyophilization. We also used a low vacuum environment scanning electron microscope (ESEM, Nova Nano SEM 430, FEI, The Netherlands) to study the surface morphology and structure of the wet scaffolds.

The geometry and architecture of dried scaffolds after lyophilization were characterized by both three-dimensional rotational optical microscopy (HiroX7700, HiroX, Japan) and ESEM analysis.

2.6. Porosity, pore size and distribution analysis

The porosity of 3D plotted scaffolds was calculated following the theoretical approach by Landers et al.[24]:

where P is the scaffold porosity, d1 is the fiber diameter, d2 is the fiber spacing and d3 is the layer thickness, within each different structure.

Porosity, pore size and distribution were also experimentally measured by micro-CT (XTV160H, X-TEK, Britain). Reconstruction of 3D images of dried scaffolds was carried out with the micro-CT scanning.

2.7. Water absorption ability

The pre-weighed dry scaffolds were immersed in distilled water for 24 h at 37 °C in a shaking table. The weight change of each scaffold was monitored at different time intervals. The percent increase in water absorption was calculated as

where W′ and W0 represent the final and initial weight of scaffold, respectively.

For each group, five samples were used for measurement and average data were used for calculations.

2.8. Degradation rate

The pre-weighed dry scaffolds were sterilized with UV-light, soaked in Dulbecco's modified Eagle's medium, supplemented with 10% fetal bovine serum, and incubated in an atmosphere of 5% CO2 at 37 °C. At different time intervals, the scaffolds were taken out and weighted after lyophilization. The medium was changed every second day, and scaffolds were incubated for 15 days. The degradation rate was calculated as

where W′ and W0 represent the final and initial weight of scaffold, respectively.

2.9. Mechanical properties

The compressive stress-strain measurements were performed on the water swollen printed hydrogels using a dynamic mechanical analysis (DMA, Q800DE, TA Instruments, USA). The rectangular block hydrogel scaffolds (10 mm × 10 mm × 2 mm) were precisely measured using a digital caliper micrometer. The stress-strain curves of the scaffolds were recorded at a compressing speed of 1 mm/min, and the Young's modulus was derived from the regression of the linear portion of stress-strain curves. Each measurement was performed in quintuplicate. Results are reported as the mean standard deviation.

2.10. Cell adhesion analysis

Mouse bone mesenchymal stem cells (mBMSCs, ATCC CRL12424) were used to observe the cell adhesion on the scaffolds. mBMSCs at passage 7-8 were used in the following experiments. Cells were cultured in Dulbecco's Modified Eagles's Medium (DMEM) supplemented with 10% fetal bovine serum (FBS) and 1% penicillin/streptomycin at 37 °C in a moist atmosphere of 5% CO2, and collected by trypsinization by 0.25% trypsin-EDTA solution. To trace the cellular behavior, we used CellTracker (CellTracker Green CMFDA, Invitrogen) to label mBMSCs before seeding. The scaffolds were sterilized with UV-light and placed into a 24-well plate. Cell suspension (4 × 104 cells per scaffold, 500 µL) was then seeded on the scaffolds. After culturing for 3 days, the cell adhesion on the scaffolds was observed with an inverse fluorescent microscope.

2.11. Statistical analysis

All experiments were independently repeated at least three times, and the data are presented as the mean standard error (SE). The data were analyzed by one-way ANOVA. P-values of <0.05 were considered to be statistically significant.

3. Results and Discussion
3.1. Fabrication of gelatin/alginate scaffolds

Scaffolds were fabricated by Bioplotter as previously described by Landers et al.[24]. Briefly, this device involves a moving dispense head (x-y-z control), using compressed air to force out a viscous material through a thin needle and the subsequent hardening of the material on the platform. We fabricated gelatin/alginate scaffolds at a plotting temperature of 37 °C, quite mild for cells and other thermally sensitive biocomponents. It is well-known that the stability and mechanical properties of gelatin and alginate are quite poor without crosslinking. Post-processing methods are needed to improve the stability and mechanical properties of hydrogel scaffolds. Sodium alginate can be easily and rapidly crosslinked by Ca2+ and the gelling process is generally considered biocompatible. The low concentration of GTA (0.25%, 1% and 2.5%) was used to crosslink the gelatin. To study the effect of pore architectures on scaffold properties, we designed the angles of fiber orientation (60° and 90°) to fabricate scaffolds with different pore architectures.

3.2. FTIR

The FTIR spectra (Fig. 1) show the characteristic peaks of alginate at 3373 cm-1 (O—H stretching) and 1036 cm-1 (C—O—C stretching). The characteristic peaks of gelatin at 1553 cm-1 were the overlapped peaks caused by C—N and C—N stretching. It is generally assumed that GTA crosslinking of gelatin takes place through reaction of available free amine groups on gelatin with GTA, forming a Schiff base[23]. The conjugation effect of C—N double bond and C—O double bond causes the peaks at 1553 cm-1 moving to lower frequencies slightly.

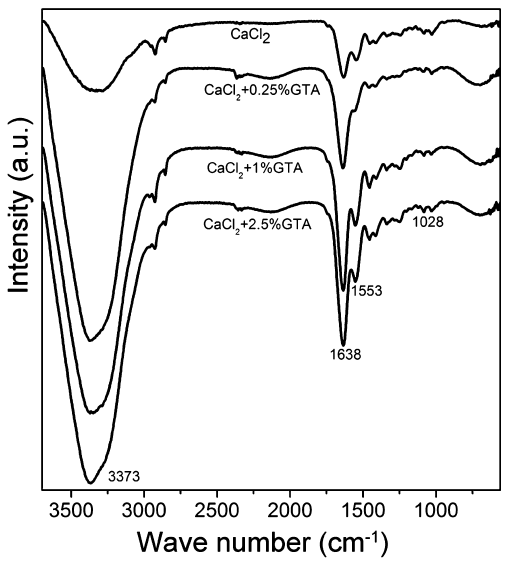

Fig. 1. FTIR spectra of gelatin/alginate scaffolds with different crosslinking processes.

3.3. Morphology and structure characterization

Because the hydrogel fibers were transparent in water and inconvenient to observe, FITC was used to label the hydrogel for better observation. The fibers deposited layer by layer for seven layers with the deposition angle of either 60° (Fig. 2(a-d)) or 90° (Fig. 2(e)), building a 3D porous scaffold with pre-designed structure. The diameter of fibers was approximately 500 µm, and the spacing between fibers was about 300 µm. With increasing GTA concentration from 0% to 2.5%, the shape and structure of fibers did not change dramatically. Theoretically the dimension of fiber depends on the nozzle diameter. Because of soaking in the liquid medium, the hydrogel fibers swelled a little for water absorption, reaching a diameter of about 500 µm, a little larger than the setting value (400 µm). Meanwhile, the fiber spacing decreased. To further study the morphology and structure of the wet scaffolds, low vacuum ESEM was performed to observe the water-containing scaffolds (Fig. 3). The surfaces of scaffold fibers were quite smooth. Although the scaffolds were observed in a water-containing state, low vacuum caused the fibers' and the whole scaffolds' shrinkage. Both fluorescence and ESEM images demonstrated that the different GTA concentrations had little influence on the architecture and morphology of scaffolds.

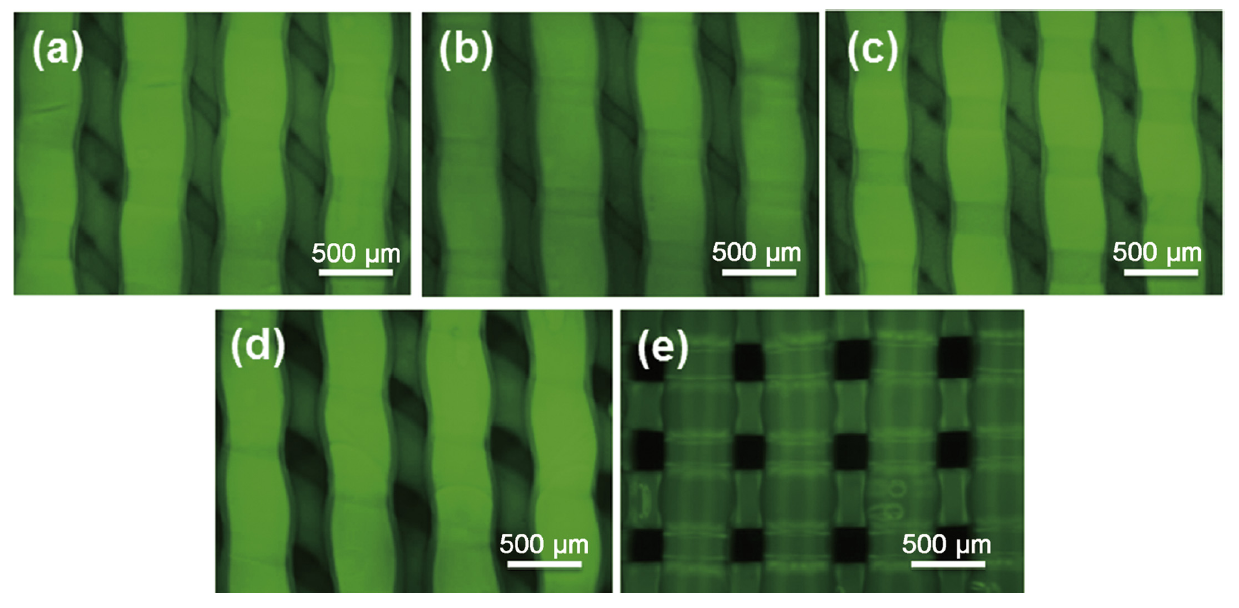

Fig. 2. Fluorescent images of wet scaffolds treated with different crosslinking processes: (a) CaCl2; (b) CaCl2+0.25% GTA; (c) CaCl2+1% GTA; (d) CaCl2+2.5% GTA; (e) CaCl2+0.25% GTA -90°.

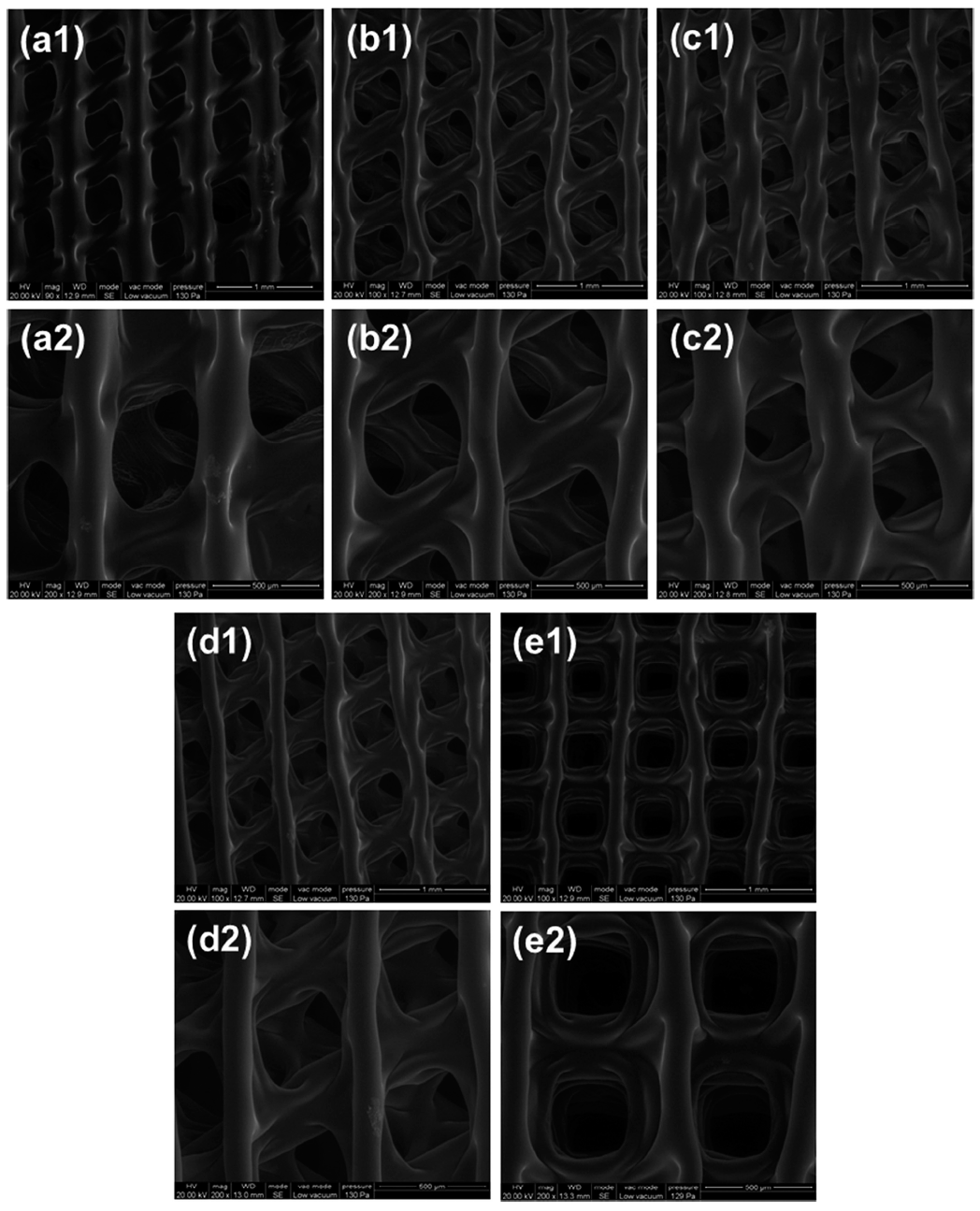

Fig. 3. Low vacuum ESEM images of wet scaffolds of different magnifications: (a) CaCl2; (b) CaCl2+0.25% GTA; (c) CaCl2+1% GTA; (d) CaCl2+2.5% GTA; (e) CaCl2+0.25% GTA -90°.

Given that the wet scaffolds were easy to degrade by bacteria and difficult to operate, all scaffolds were lyophilized. To study the effect of lyophilization, scaffolds were observed by 3D rotational microscopy and scanning electron microscopy (SEM). From the optical microscopy images, we can see that CaCl2 crosslinked scaffold is transparent (Fig. 4(a)), while GTA crosslinked scaffolds are brown (Fig. 4(b)-(e)). The color changed from light brown to deep brown with the increase of GTA concentration. Vertical pores (Fig. 4(a1)-(e1)) and horizontal pores (Fig. 4(a3)-(e3)) maintained their shape and architecture. Fibers of both only CaCl2 and 0.25% GTA crosslinked scaffolds shrinked to about 220 ± 10 µm (Fig. 4(a2), (b2) and (e2)), and the diameter of fibers treated with 1% and 2.5% GTA decreased to around 260 ± 10 µm (Fig. 4(c2), (d2)). A fiber deposition angle of 60° created triangle pores (Fig. 4(a)-(d)), while a 90° angle step generated quadrangular pores (Fig. 4(e)). The post-processing methods and lyophilization had little effect on the structure of scaffolds. The SEM images also illustrated the interconnected vertical and horizontal pores of all scaffolds (Fig. 5). From the images with higher magnification, it could be seen that the surface morphology of scaffolds was no longer smooth, which displayed many foldings and cracks caused by lyophilization. These foldings and cracks increased the surface roughness and could affect the water absorption of scaffolds and cell adhesion behavior[25] and [26].

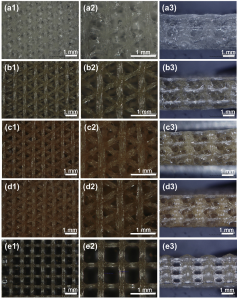

Fig. 4. 3D rotational microscopy images of magnified surface and cross section of the dried scaffold: (a) CaCl2; (b) CaCl2+0.25% GTA; (c) CaCl2+1% GTA; (d) CaCl2+2.5% GTA; (e) CaCl2+0.25% GTA-90°. 1, 2 indicate the horizontal sections with different magnifications and 3 represents the vertical cross-sections of scaffolds.

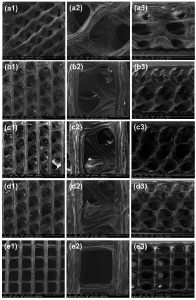

Fig. 5. SEM images of magnified surface and cross section of the dried scaffold: (a) CaCl2; (b) CaCl2+0.25% GTA; (c) CaCl2+1% GTA; (d) CaCl2+2.5% GTA; (e) CaCl2+0.25% GTA-90°. 1, 2 indicate the horizontal sections with different magnifications and 3 represents the vertical cross-sections of scaffolds.

3.4. Porosity, pore size and distribution

The porous architecture design plays a vital role in tissue regeneration by providing temporary mechanical function, preserving tissue volume and circulating of nutrients and waste products[27]. The porosity calculated from theoretical formula was 50%, while the experimental results from micro-CT indicated that the porosity of wet and dried scaffolds were 40% and 75%, respectively (Fig. 6(a)). Beside dried scaffolds treated with only CaCl2, for both wet and dried scaffolds there were no significant difference between each group. Scaffolds with the same fiber diameter and spacing but different fiber orientations (0-60 and 0-90) had an approximate porosity. The results from micro-CT showed that the bioplotted scaffolds were all 100% interconnected pores. Based on the theoretical formula we can find that the scaffold porosity is mainly determined by the fiber diameter and fiber spacing, irrelevant to fiber orientation. The porosity of wet scaffolds decreased because of hydrogel swelling, yet that of dried scaffolds increased owing to the fiber dehydration caused by lyophilization. The decrease in porosity of only CaCl2 treated and lyophilized scaffolds may be caused by the instability of the uncrosslinked structure, which implied the necessity of GTA crosslinking. The results are in good agreement with morphology and structure characterization.

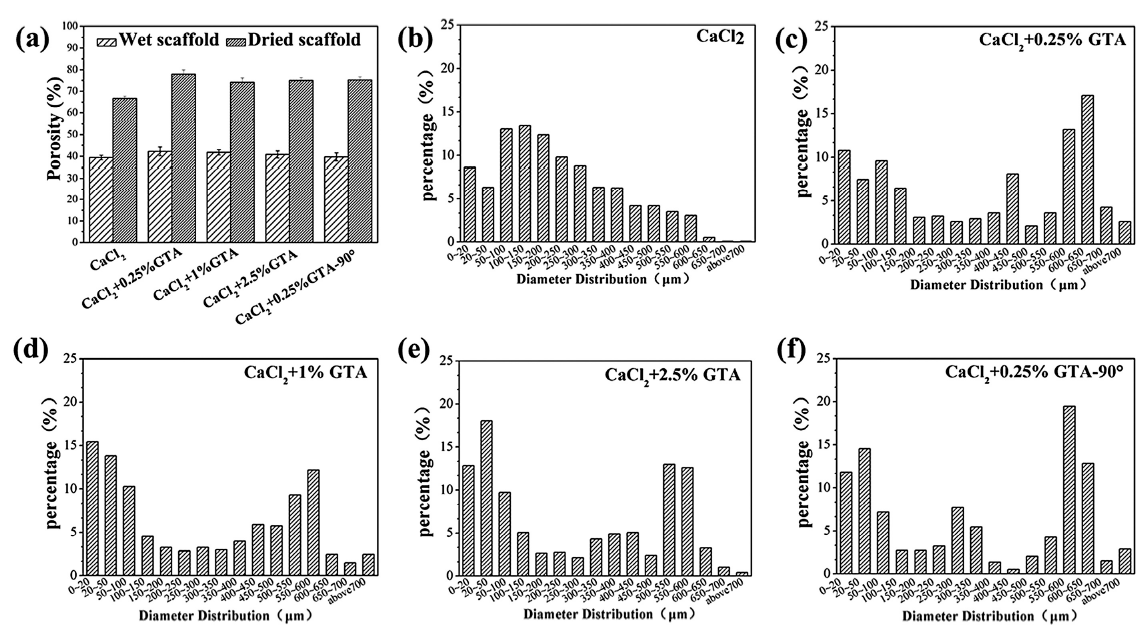

Fig. 6. (a) Porosity of both wet and dried scaffolds treated with different crosslinking processes, (b-f) pore size distribution of dried scaffolds. * indicated that there was significant difference (p < 0.05).

For bone tissue engineering, studies demonstrated that a pore size above 300 µm benefited to increase bone formation through vascularization, and pore sizes of 100-400 µm may be good for osteoconduction[28] and [29]. Fig. 6(b-f) illustrates the pore size and distribution of dried scaffolds. Except for CaCl2 crosslinked scaffolds (Fig. 6(b)), the main pore size of GTA-crosslinked scaffolds distributed over 550 ± 50 µm (Fig. 6(c-f)), which were also confirmed by SEM images of vertical pores. The pore size between 150 and 450 µm was supposed to be horizontal pores and interconnected pores, while the pores below 100 µm were considered to be the foldings and cracks on surface of fibers. For only CaCl2-crosslinked scaffolds, the majority of pores distributed at the size ranging from 100 µm to 250 µm (Fig. 6(b)), which indicated that only CaCl2 crosslinked scaffolds displayed poor stability because the process of lyophilization might damage the inner porous structure. For scaffolds with the same fiber diameter and spacing but different fiber orientations (0-60 and 0-90), there was no significant difference in porosity. However, their pore size and distribution were different. Compared to 0-90 scaffolds (Fig. 6(f)), proportion of 550 ± 50 µm pores in 0-60 scaffolds decreased, and correspondingly smaller pores increased. The whole morphology and structure of each scaffold was reconstructed by micro-CT (Fig. 7). After crosslinking and lyophilization process, the outer structure of each scaffold did not change much from setting values, with an approximate dimension of 10 mm × 10 mm × 2 mm.


Fig. 7. Reconstruction of 3D images of dried scaffolds by micro-CT: (a) CaCl2; (b) CaCl2+0.25% GTA; (c) CaCl2+1% GTA; (d) CaCl2+2.5% GTA; (e) CaCl2+0.25% GTA-90°.

The characterization of scaffold structure demonstrated that the GTA crosslinked hydrogel scaffolds maintained satisfactory outer and inner structure after the crosslinking and lyophilization process, while only CaCl2 treated scaffolds were not strong enough, leading to a little damage to the inner structure and a decrease in scaffoldporosity. The fiber diameter as well as porosity of both wet and dried scaffolds had minor differences among groups treated with different concentrations of GTA (0.25, 1, and 2.5%). These two kinds of scaffolds had distinct pore size and distribution, which may affect the mechanical properties of scaffolds.

3.5. Water absorption ability and degradation rate

The water absorption ability has been demonstrated to be an important feature for tissue engineering scaffolds, because it concerns the absorption of body fluid as well as permeation and transportation of nutrients and waste products[30]. Fig. 8 shows the water uptake ability of each scaffold. All scaffolds had relative high water uptake properties, probably due to the 100% interconnected macropores and mesopores/micropores on the surface of scaffolds. After soaking in medium for 2 h, the CaCl2 crosslinked scaffolds had already reached its swelling equilibrium point. However, when scaffolds continued soaking in the medium, the water absorption percentage began to decrease. The time for 0.25% GTA treated scaffolds (both 0-60 and 0-90) reaching swelling equilibrium was about 5 h, while the time was about 10 h for 1% and 2.5% GTA crosslinked scaffolds. After soaking for 24 h, the water absorption percentage of CaCl2 scaffolds decreased to 570% ± 20%, and that of 0.25% GTA treated scaffolds was about 650% ± 50% for both 0-60 and 0-90 scaffolds. Compared to CaCl2 and 0.25% GTA crosslinked scaffolds, 1% and 2.5% GTA treated scaffolds swelled much less with a water uptake percentage of around 500% ± 20% and 300% ± 30%, respectively.

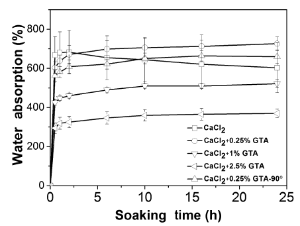

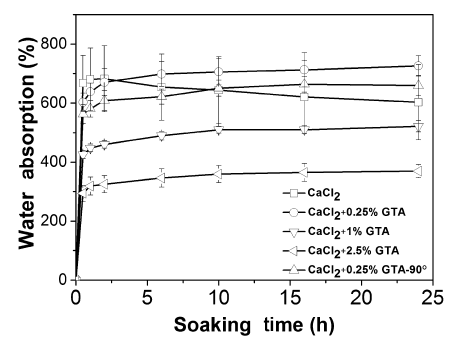

Fig. 8. Water absorption ability of dried scaffolds.

Bigi et al.[31] reported that the crosslinking process provided a significant reduction of the swelling. With the GTA concentration increased, the percentage of water uptake decreased, and the time of reaching the swelling equilibrium was prolonged, which was supposed to be caused by the different degrees of crosslinking. Osmotic pressure forces, electrostatic forces and viscoelastic restoring forces are the three main forces governing the swelling behavior of hydrogels[32]. The increase in the concentration of GTA lead to the higher degree of crosslinking of the hydrogel network; thus viscoelastic restoring forces attenuated and the water uptake ability decreased. The gelatin of only CaCl2-treated scaffolds was not crosslinked, so the scaffolds quite easily collapsed in solutions. After soaking for 5 h, the water absorption ratio began to decline. The swelling percentage of 0-60 scaffolds was a little higher than that of 0-90 scaffolds. This could be explained by the more complex deposition form of 0-60 scaffolds, leading to higher specific surface area. We can conclude that the water absorption ability was mainly determined by the composition of scaffold materials.

The degradation rate is another important factor for tissue engineering scaffolds. An ideal scaffold should be able to degrade with time in vivo, preferably at a controlled degradation rate and eventually create spacing for the new tissue to grow [5]. We evaluated the degradation rate of dried scaffolds for 15 d (Fig. 9). CaCl2-crosslinked scaffolds degraded up to 40% after soaking for 15 d. After 15 d, 0.25% GTA crosslinked scaffolds degraded 25% ± 1.8%, while 1% and 2.5% GTA crosslinked scaffolds degraded about 21% ± 2.7% and 18% ± 1.7%, respectively. The increasing concentrations of GTA lead to a decrease in degradation rate. The crosslinking methods played a vital role in degradation behavior.

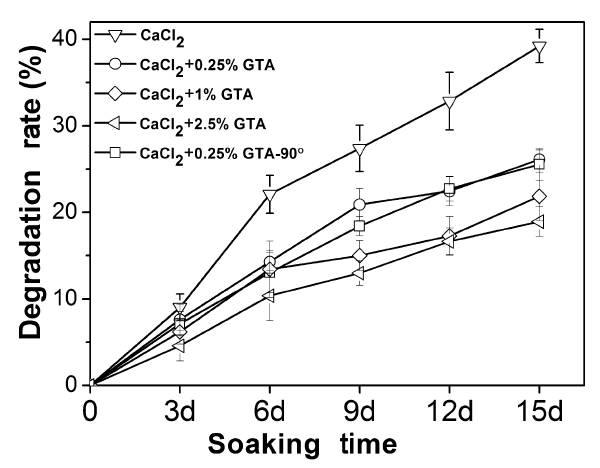

Fig. 9. Degradation rate of hydrogel scaffolds.

3.6. Mechanical properties

The attainment of appropriate mechanical strength is a vital requirement for tissue engineering scaffolds[33]. It has been generally accepted that adjusting the mechanical properties to the desired tissue is essential. For example, soft tissue strengths are typically located between 0.4 and 350 MPa, while hard tissue regeneration requires strengths of 10-1500 MPa[34]. Compressive stress-strain curves were recorded using a DMA in the dried state (Fig. 10(a)). Final deformation rate and Young's modulus were compared (Fig. 10(b) and (c)). Although all kinds of scaffolds had their unique stress-strain curves, the tendency of curves was in good accordance among scaffolds with the same pore structure that was treated with different concentrations of GTA. The curve of CaCl2-crosslinked scaffolds was almost flat, meaning only CaCl2-crosslinked scaffolds were more flexible than GTA-crosslinked ones. To the scaffolds with the same fiber irritation, the higher the GTA concentration was, the sharper the slope of stress-strain curve was. The final deformation rate of CaCl2 and 0.25%, 1%, 2.5% GTA crosslinked scaffolds were 71.98% ± 4.88%, 63.69% ± 3.79%, 57.46% ± 4.36%, and 45.07% ± 5.79%, respectively (Fig. 10(b)). For 0.25% GTA crosslinked scaffolds, the final deformation rate of 0-60 and 0-90 scaffolds was not significantly different. It was an interesting result that although 0-90 and 0-60 scaffolds with the same GTA concentration have quite different stress-strain behaviors, there was no significant difference in final deformation rate.

p < 0.05). '>

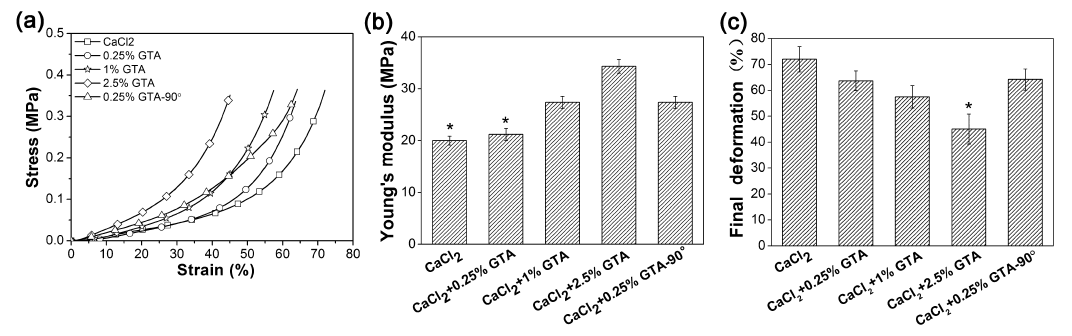

Fig. 10. (a) Stress-strain curves with a compressing rate of 1 mm/min, (b) and (c) comparison of final deformation rate and Young's modulus. * indicated that there was significant difference (p < 0.05).

The Young's modulus of each group was 20 ± 0.88, 21.13 ± 1.15, 27.36 ± 1.25, 34.33 ± 1.05 MPa, and 27.36 ± 1.26 MPa, respectively (Fig. 10(b)). Comparing the final deformation rate and Young's modulus, we can see that GTA crosslinking dramatically affected the stiffness of scaffolds. It is evident that the stiffness of scaffolds increased with increasing GTA concentration. When Young's modulus increased, the final deformation rate decreased. Interestingly, a change of the scaffolds from 0-60 to 0-90 fiber deposition resulted in a stiffer construct, while the porosity was constant. Compared to 0-90 scaffolds, in 0-60 scaffolds the increased number of local contact points led to a larger contact area, thus leading to a decrease of the local stress experienced by the scaffolds. It can be noted that the macroporous structure plays a determinant role in the mechanical properties of the whole scaffolds.

3.7. Cell adhesion

Fig. 11 shows the cell adhesion behavior on different scaffolds. For each scaffold, we chose three different focal planes to show the cell distribution on the 3D porous construct. In the fluorescence images, it could be observed that cells distributed well on the scaffolds, indicating that all scaffolds had good cytocompatibility. As native alginate hydrogels do not support cell adhesion[35], the cell attachment was promoted mainly by gelatin. The excessive GTA crosslinking may lead to the loss of cell adhesion molecules on gelatin. So scaffolds treated with less than 1% of GTA concentration may be better for cell adhesion and survival. As previously mentioned it is better to in situ encapsulate cells into hydrogels and plot the hybrid constructs. And our next goal is to plot cell-laden hydrogels.

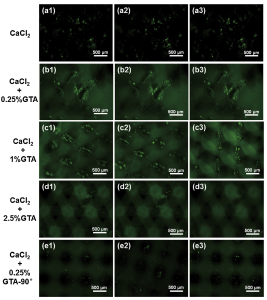

Fig. 11. Fluorescent images of mBMSCs cell adhesion on scaffolds cultured for 3 days. The three parallel figures indicate three different focal planes under the same visual field.

4. Conclusion

In this study, we have engineered the gelatin/alginate 3D scaffolds by bioplotting technique and studied the effects of pore architecture and post-processing methods on physicochemical properties and biocompatibility of each scaffold. According to the experiment results, 1% GTA-crosslinked scaffolds may have the most appropriate properties for tissue regeneration. Our next plan is to encapsulate cells or drugs in this kind of scaffolds and apply for bone or cartilage tissue engineering and regeneration.
