Graphene, a two-dimensional (2D) flat monolayer sheet of sp²-bonded carbon atoms, has attracted a considerable interest in various fields such as materials science, chemistry, and condensed matter physics, since it was first discovered by Novoselov group^{[1], [2] and [3]}. The unique structure endows graphene with some attractive properties, including excellent chemical/thermal stability^[4], high electrical conductivity^[5], superior mechanical strength^[6], and large specific surface area^[7]. Despite these unique properties, bare graphene is not an ideal Li-storage host because of its poorly developed potential plateaus, large potential hysteresis, and high irreversible capacity on the first cycle, even though it could exhibit moderate capacity, satisfactory rate capability, and good cycling stability^{[8], [9] and [10]}. Instead, graphene is more suitable to act as support for nanostructured Li-storage materials^{[11], [12] and [13]}, for example transition metal oxides (TMOs) which generally show high capacity but poor cycling performance^[14].

Previous work has shown that the electrochemical performance of some TMOs, Co₃O₄^{[15] and [16]}, CoO^{[17] and [18]}, NiO^[19], Fe₂O₃^{[20] and [21]}, Fe₃O₄^[22], Mn₃O₄^{[23] and [24]}, MnO^[25] etc., can be remarkably improved by forming hybrids with graphene. Besides simple oxides, some mixed oxides, such as CoFe₂O₄^{[26] and [27]}, MnFe₂O₄^[28], NiFe₂O₄^[29], and ZnFe₂O₄^{[30] and [31]} also show improved electrochemical properties by introducing graphene. NiFe₂O₄ is a typical mixed oxide and has been investigated as a Li-storage host^{[32], [33], [34], [35], [36], [37] and [38]}. The theoretical capacity of NiFe₂O₄ is calculated to be 914 mA h g^{− 1} according to the reactions^[36]:

equation(1)

NiFe₂O₄ + 8Li → Ni + 2Fe + 4Li₂O

equation(2)

Ni + 2Fe + 4Li₂O ↔ NiO + Fe₂O₃ + 8Li

After the first cycle, reversible reaction between Ni/Fe/Li₂O and NiO/Fe₂O₃/Li occurs while NiFe₂O₄cannot be recovered. Compared with Fe₂O₃, NiO exhibits a low conversion potential^[14], leading to a low Li-storage potential of NiFe₂O₄ compared with Fe₂O₃. In addition, the mixed oxide may show improved cycling performance than the corresponding simple oxide since one component may act as the buffer for the other because of the different conversion potentials. As previously reported, NiFe₂O₄/carbon-nanotubes (CNTs) exhibited better electrochemical performance than Fe₂O_3/CNTs^[39], indicating the advantage of mixed oxides.

It was found that the electrochemical performance of NiFe₂O₄ can be improved using nanostructured materials^{[38] and [40]}, or forming hybrids with carbon materials^{[37] and [39]}. A low-temperature solution route is favored to synthesize small sized NiFe₂O₄. Besides, a carbon matrix is usually needed to further improve the electrochemical performance. However, it is difficult to achieve a uniform dispersion of nanoparticles on carbon matrix, for example graphene, because of its hydrophobic nature. In contrast, graphite oxide (GO), the precursor for graphene, can be sufficiently exfoliated to single-layered or few-layered graphene oxide sheets in water or some polar solvents^{[41] and [42]}. In addition, the negatively charged graphene oxide can absorb positively charged metallic ions by electrostatic attraction^[43]. Also, the oxygen-containing groups can be removed after the hydrothermal or solvothermal reaction, leading to the formation of reduced graphene oxide (rGO). Unlike perfectly crystallized graphene, rGO processed by solution route still contains residual oxygen-containing groups. Thus, it is possible to synthesize graphene-based hybrids with a facile in situ route by using GO as the precursor.

In our previous work^[26], a controllable route was proposed to prepare CoFe₂O₄/rGO and MnFe₂O₄/rGO hybrids. The hybrid could exhibit better electrochemical performance than bare CoFe₂O₄. To synthesize uniform CoFe₂O₄/rGO and MnFe₂O₄/rGO, a low-temperature pre-heating step is necessary and organic solvent such as ethylene glycol (EG) is needed. Without the pre-heating step, large particles will form. It suggests that the oxygen-containing groups can be rapidly removed in the reductive solvent, for instance EG. Without the pinning effect of these groups, small crystals tend to aggregate into large particles. In this work, we found that NiFe₂O₄/rGO can be synthesized by a facile in situ route in deionized (DI) water which is less reductive compared with some organic solvents. In the hybrid, NiFe₂O₄nanocrystals of 5-10 nm can be uniformly dispersed on rGO without the pre-heating step. The hybrid shows obviously improved electrochemical performance than bare NiFe₂O₄ due to rGO incorporation and formation of the unique hybrid structure.

NiFe₂O₄/rGO was synthesized by a facile one-pot hydrothermal route at 180 ° C for 24 h. As shown inFig. 1(a), all the diffraction peaks of NFO/rGO and NFO can be indexed to cubic NiFe₂O₄ phase (space group Fd-3m, JCPDS cards No.74-2081). The broad diffraction peaks of the two samples suggest that their particle sizes are rather small. Fig. 1(b) gives the TG curve of NFO/rGO, from which the rGO content is estimated to be 30 wt%. At such a high rGO content, however, the diffraction peak of rGO was not detected, while bare rGO exhibits its (002) characteristic peak at around 2θ = 25° . This indicates that the restacking of rGO sheets after reduction has been effectively refrained by anchoring NiFe₂O₄ particles as spacers. As seen in Fig. 1(c), the Brunauer-Emmett-Teller (BET) specific surface area (S_BET) of NFO increases from 85 to 107 m² g^{− 1} by rGO incorporation. Because of severe restacking, bare rGO exhibits a low S_BET of 29 m² g^{− 1 [25]}. This indicates that the increase in S_BET is mainly due to the formation of the hybrid structure. Fig. 1(d) presents Raman spectra of NFO/rGO and GO. Both samples exhibit two bands at 1350 and 1580 cm^{− 1}, corresponding to the D line and G Line of carbon materials. NFO/rGO shows an increased D/G intensity ratio compared with GO, due to a decreased average size of the sp²domains and an increased number of these domains during the reduction of GO ^[45].

Fig. 1

	Figure Option ViewDownloadNew Window

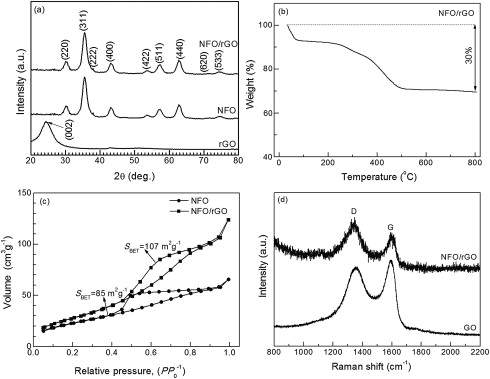

	Fig. 1 (a) XRD patterns of NFO/rGO, NFO, and rGO, (b) TG curve of NFO/rGO, (c) N2 absorption/desorption isotherms of NFO/rGO and NFO, and (d) Raman spectra of NFO/rGO and GO.

The morphology of NFO/rGO is characterized by SEM, TEM and HRTEM. Unlike CoFe₂O₄ and MnFe₂O₄^[26], NiFe₂O₄ cannot form in EG because Ni²⁺ will be reduced to metallic Ni by EG. Instead, it was synthesized in DI water. The hydrothermal product exhibits a thin sheet-like structure with a lateral size of several microns as seen in Fig. 2(a). TEM image in Fig. 2(b) demonstrates that the thin rGO sheet is densely decorated with nanosized NFO without the formation of large aggregations. HRTEM image inFig. 2(c) shows that each NFO particle is a single crystal with a size of 5-10 nm. This means that the attachment of primary nanocrystals to large secondary particles did not occur for NFO, unlike the case in CoFe₂O₄ or MnFe₂O₄. The inhibition of crystals attachment can be attributed to the pinning effect of the residual oxygen-containing groups on NFO due to the use of less reductive water instead of EG. HRTEM image also displays that NFO nanocrystals are firmly confined by few-layered rGO sheets. Fig. 2(d) presents energy dispersive X-ray spectroscopy (EDS) of NFO/rGO from which the Ni/Fe atomic ratio is roughly determined to be 1:2. The SEM and TEM images of bare NFO are presented in Fig. 2(e, f). Note that without the fixing effect of rGO, NFO crystals tend to aggregate.

Fig. 2

	Figure Option ViewDownloadNew Window
	Fig. 2 (a) SEM, (b) TEM, and (c) HRTEM images of NFO/rGO, (d) EDS of NFO/rGO, and (e) SEM and (f) TEM images of bare NiFe2O4.

The formation process of NFO/rGO hybrid is schematically illustrated in Fig. 3. Positively charged metallic ions (Ni²⁺, Fe³⁺) are first attracted by negatively charged graphene oxide sheets by electrostatic attraction, followed by hydrolysis and the nucleation. The oxygen-containing groups on graphene oxide are not completely removed at the early reaction stage which can act as the nucleation sites for NiFe₂O₄crystallization and as the barriers for the slide and aggregation of NiFe₂O₄ crystals, refraining the crystal growth of NiFe₂O₄. Interaction between rGO and Ni or Fe is possible by forming C-O-Ni^[46] or C-O-Fe^[47] linkages, further preventing the crystal growth of NiFe₂O₄. When the reaction proceeds, reduction of graphene oxide to hydrophobic rGO sheets occurred, leading to the confinement of NFO crystals by restacked rGO sheets. The confining effect of rGO sheets also inhibits the aggregation of NFO nanocrystals.

Fig. 3

	Figure Option ViewDownloadNew Window
	Fig. 3 Schematic illustration of the formation mechanism of NFO/rGO.

Charge and discharge cycling was performed to investigate the effect of rGO introduction on electrochemical performance of NiFe₂O₄. Fig. 4(a) shows the first three voltage profiles of NFO/rGO charged (de-lithiation) and discharged (lithiation) at 50 mA g^{− 1}. The specific capacity and specific current of NFO/rGO were calculated based on the total mass of NFO and rGO. The first charge and discharge capacities of NFO/rGO are 837 and 1546 mA h g^{− 1}, respectively. After the first cycle, reversible reactions occur for NFO/rGO evidenced by its almost overlapped charge or discharge curves. In contrast, the charge capacity of bare NFO decreases from 361 to 260 mA h g^{− 1} within only three cycles as shown in Fig. 4(b). The first charge capacity of NFO/rGO is calculated to be 1195 mA h g^{− 1} if the mass of rGO (30 wt%) is excluded, higher than the theoretical capacity (914 mA h g^{− 1}) of NiFe₂O₄. The extra capacity can be attributed to the enhanced exfoliation of rGO sheets by NFO loading which renders more exposed vacancy defects for Li-storage^[9]. The reversible Li-storage capacity of rGO itself is low as observed in our previous work^[25].

Fig. 4

	Figure Option ViewDownloadNew Window

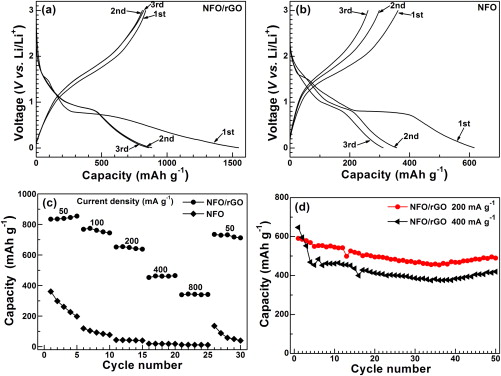

	Fig. 4 The first three voltage profiles of (a) NFO/rGO and (b) NFO, (c) comparison of rate capability between NFO/rGO and NFO, and (d) cycling stability of NFO/rGO charged at 200 and 400 mA g− 1.

Fig. 4(c) compares the rate capability between NFO/rGO and NFO. The cells are charged at various current densities and discharged at 50 mA g^{− 1}. Clearly, the rate capability of NFO is significantly improved by forming a hybrid with rGO. At 800 mA g^{− 1}, NFO/rGO can still deliver a charge capacity of around 340 mA h g^{− 1}. By contrast, the value of bare NFO at this current density is only 11 mA h g^{− 1}. The improved rate capability of NFO/rGO is related closely to the unique microstructure of the hybrid. First, rGO offers 2D electronically conductive channels for the active particles since they are firmly and uniformly anchored on rGO sheets because of their small size; second, although NiFe₂O₄ crystals are densely anchored on rGO, there is still sufficient free space in hybrid that facilitates the wetting of the active materials by electrolyte and rapid Li-ion diffusion at the particle/electrolyte interface; third, the small size (5-10 nm) of NFO nanocrystals reduces the Li-ion diffusion length, rendering rapid Li-ion transport in bulk particles; Fourth, few-layered rGO also supplies rapid Li-ion diffusion channels. Clearly, the improvement in rate capability is closely related to the unique structure of the hybrid composed of small sized NiFe₂O₄ and few-layered rGO.

Fig. 4(d) shows the cycling performance of NFO/rGO at charge current of 200 and 400 mA g^{− 1}. Stable cycling of NFO becomes possible by fabricating a hybrid with rGO. At 200 mA g^{− 1}, NFO/rGO delivers an initial charge capacity of 590 mA h g^{− 1}. After 50 cycles, the capacity can be maintained at 489 mA h g^{− 1}. Note that the capacity is on the increase after 35 cycles. It suggests that the increase in capacity is attributed to the gradual activation of NiFe₂O₄ particles after initial cycles. The pulverization of NiFe₂O₄into smaller particles during cycling may also contribute to the capacity rise since size reduction generally increases the utilization of the active material, provided that the smaller particles still anchor on rGO sheets. The good cycling stability of NFO/rGO can be ascribed to the following factors: (1) rGO can tightly immobilize the active particles even though pulverization occurs; (2) the high Li-ion/electronic conductivity of rGO makes it possible for rapid electrochemical reactions at high current densities; (3) both the free space and rGO in the hybrid provide buffering effect for the volume changes. The electrochemical performance of our NiFe₂O₄/rGO is better than those of NiFe₂O₄ samples which usually exhibited rapid capacity fade without carbon support^{[34] and [35]}, and is comparable with or superior to those using carbon matrix considering the applied current density^{[29] and [37]}. Note that although CNTs addition could significantly improve the electrochemical performance of NiFe₂O₄, the synthesis of NiFe₂O₄/CNTs involved the use of costly precursors and a relatively complicated procedure^[39]. The facile synthesis method and good electrochemical performance make our NiFe₂O₄/rGO hybrid a promising anode material for Li-ion batteries.

NiFe₂O₄/rGO nanohybrid has been successfully synthesized by a facile in situ hydrothermal route. The formation of NiFe₂O₄ and reduction GO can occur simultaneously through a one-pot route. In the hybrid, NiFe₂O₄ nanocrystals (5-10 nm) are uniformly distributed on rGO. NiFe₂O₄/rGO hybrid shows better rate capability than bare NiFe₂O₄ due to the formation of 2D Li-ion/electronic conductive channels and easy electrode wetting of the hybrid structure. The hybrid shows good cycling stability because of the confining effect of rGO for NiFe₂O₄ crystals as well as the buffering effect of free space and rGO for the volume changes. Our NiFe₂O₄/rGO sample is among the best ones for NiFe₂O₄-based anode materials. This work provides a facile, cost-effective, and controllable route to synthesize high-quality anode material based on mixed oxides.
