The ingots of Mg_69-xZn₂₇Ca₄Yx (x = 0, 1 and 2 at.%) were obtained by melting the mixture of pure Mg (99.9 wt%), Zn (99.9 wt%), Mg-Ca master alloy (30 wt% Ca), and Mg-Y master alloy (25.7 wt% Y) in an induction furnace with argon in the atmosphere. Then the Mg_69-xZn₂₇Ca₄Yx master alloys were re-melted and injected into a copper-mold with a diameter of 1.5 mm. The samples for immersion and electrochemical tests were wet ground through successive grades of silicon carbide emery papers of up to 1400 grit, washed with distilled water, degreased with acetone and then dried in air.

The microstructure of the alloys was studied through XRD (Rigaku D/MAX-2500PC) with CuKα radiation and scanning electron microscopy (SEM, TESCAN VEGA Ι Ι LMU). The XRD pattern was analyzed with MDI Jade5.0 software. The thermal stability of the alloys was investigated by differential scanning calorimetry (DSC, PE-7) at the heating rate of 20 K/min. The compressive specimens with an aspect ratio of 2:1 were cut using a low-speed diamond saw and were then polished to guarantee parallelism and perpendicularity prior to the uniaxial compressive test. The compressive tests were carried with a SANS CMT5105 testing machine at the strain rate of 10^-4 s^-1.

The corrosion behavior analysis was conducted with an electrochemical workstation (CHI660C, China) at 37 ° C in simulated body fluid (SBF^[9], NaCl 8.035 g/L, NaHCO₃ 0.355 g/L, KCl 0.225 g/L, K₂HPO₄· 3H₂O 0.231 g/L, MgCl₂· 6H₂O 0.311 g/L, CaCl₂ 0.292 g/L, Na₂SO₄ 0.072 g/L, (HOCH₂)₃CNH₂ 6.118 g/L). Electrochemical measurements were performed through a typical three-electrode cell with a platinum plate as counter electrode, a saturated calomel electrode as reference electrode and the sample with an exposed surface as working electrode. All samples were cut from the copper-mold injected samples and the as-cast pure Mg. These samples were molded into an epoxy resin with only one side of Φ 1.5 mm exposed for the test. Prior to the potentiodynamic polarization test, the samples were kept in the solution for 4000 s in order to stabilize the open circuit potential (OCP). The measurements swept from the initial potential of -2.0 V/SCE at a constant scan rate of 1 mVs^-1 to the final potential of approximate -0.9 V/SCE. The corrosion potential (E_corr) and corrosion current density (i_corr) were fitted using the CorrView software in the mode of Tafel (traditional).

Cylindrical samples with a dimension of Φ 1.5 mm × 10 mm were cut from the copper-mold injected samples and the as-cast pure Mg to prepare for the immersion test. All samples were immersed in SBF (45 h for hydrogen evolution and 85 h for pH measurement) through a water bath under the constant temperature of 37 ° C. The initial pH value of the SBF solution was 7.3. The volume of H₂ was measured over time. After the immersion test, the samples were gently rinsed with distilled water and dried in air. A Vega II LMU SEM was utilized to observe the surface morphologies. All the tests were performed in duplicate to guarantee the reproducible results.

Osteoblasts harvested from neonatal rat calvaria with a sequential collagenase digestion method were cultured in Dulbecco's modified Eagle's medium (DMEM), 10% fetal bovine serum (FBS), 100 U/ml penicillin and 100 mg/mL streptomycin at 37 ° C in a humidified atmosphere of 5% CO₂. Osteoblasts at the 3rd passage were used in the following experiments. The cytotoxicity test was carried out by the indirect contact.

The extracts of the samples were prepared by the DMEM serum free medium, with the surface area/extraction medium ratio 1 cm²/mL in a humidified atmosphere with 5% CO₂ at 37 ° C. After 72 h incubation, the supernatant fluid was withdrawn and centrifuged to prepare the extraction medium. Then the extraction medium was serially diluted to 10% concentration. The extraction medium was refrigerated at 4 ° C before the cytotoxicity test. The control groups involved the use of DMEM medium as negative control in this experiment. Cells were incubated in 96-well cell culture plates at an initial density of 5 × 10³ cells/well with 100 μ L DMEM medium and incubated for 24 h to allow attachment. Then the medium was replaced with 100 μ L of extracts. After incubating the cells in a humidified atmosphere with 5% CO₂ at 37 ° C for 3 days, 10 μ L cell counting kit (CCK-8) was added and then the samples were incubated with CCK-8 in DMEM in at 37 ° C for 4 h. The spectrophotometrical absorbance (OD) of the samples was measured by microplate reader (Bio-RAD 680) at 570 nm. The cell viability was expressed as relative growth rate (RGR) calculated according to the following formula:

RGR=ODsample/ODcontrol× 100%RGR=ODsample/ODcontrol× 100%

Fig. 1 shows the XRD patterns of the as-injected Mg_69-xZn₂₇Ca₄Yx (x = 0, 1 and 2 at.%) alloy rods with the diameter of 1.5 mm. The Mg₆₉Zn₂₇Ca₄ alloy exhibits typical amorphous features as indicated by the absence of detectable crystalline diffraction peaks. However, the Mg₆₈Zn₂₇Ca₄Y₁ alloy exhibits sharp peaks superimposed on a broad diffraction peak, implying the co-existence of crystalline and amorphous phases. The crystalline phases are further confirmed to be composed of Mg solid solution, Ca₂Mg₆Zn₃, and Mg₁₂YZn. With the addition of 2 at.% Y, the intensity of these crystalline phases increases further, and the broad peaks disappear gradually. Because of the high content of Y, Y₂O₃ was detected in Mg₆₇Zn₂₇Ca₄Y₂. From the XRD results, it is suggested that the micro-alloying Y could ruin glass-forming ability (GFA) because of the limited GFA of the Mg-Zn-Ca metallic glass ^[11].

Fig. 1

	Figure Option ViewDownloadNew Window
	Fig. 1 XRD patterns of the Mg69-xZn27Ca4Yx (x = 0, 1, and 2 at.%) alloys.

Fig. 2 displays the DSC curves of the three alloys and reveals the glass transition and crystallization behavior. It could be observed that the Mg₆₉Zn₂₇Ca₄ alloy visibly presents glass transition and multistep crystallization. The glass-forming ability of Mg₆₉Zn₂₇Ca₄ alloy is improved greatly compared with Mg₆₈Zn₂₈Ca₄ alloy which has no glass transition characteristics in our previous study^[26]. However, the thermal behavior changes remarkably even with the scantling of Y as indicated by the disappearance of glass transition temperature T_g, the dramatic rise of the crystallization temperature T_x, and the rapid decrease of the crystallization heat Δ H for the Mg₆₈Zn₂₇Ca₄Y₁ alloy. The main thermal parameters of these three alloys are summarized in Table 1.

Fig. 2

	Figure Option ViewDownloadNew Window
	Fig. 2 DSC curves of the crystallization of Mg69-xZn27Ca4Yx (x = 0, 1, and 2 at.%) alloys at a heating rate of 20 K min-1.

Table 1

Table 1

Table 1 Critical parameters of thermal, mechanical properties and corrosion resistance of Mg69-xZn27Ca4Yx (x = 0, 1, 2 at.%) alloys, ZK60 and pure Mg. Note that Δ Tm represents the difference between the melting temperature Tm and the liquid temperature Tl, σ b represents the ultimate compress stress and ε represents the elongation Composition Tg (K) Tx (K) Δ Tm (K) Δ H (J/g) σ b (MPa) ε (%) Ecorr (V/SCE) icorr (A/cm2) Mg69Zn27Ca4 384 414 39 53 550 1.3 -1.116 10-5.56 Mg68Zn27Ca4Y1 - 518 46 5 1012 3.1 -1.246 10-4.96 Mg67Zn27Ca4Y2 - - 52 - 770 2.0 -1.283 10-4.78 ZK60 - - - - - - -1.503 10-4.34 Pure Mg - - - - - - -1.636 10-3.96

Table 1 Critical parameters of thermal, mechanical properties and corrosion resistance of Mg69-xZn27Ca4Yx (x = 0, 1, 2 at.%) alloys, ZK60 and pure Mg. Note that Δ Tm represents the difference between the melting temperature Tm and the liquid temperature Tl, σ b represents the ultimate compress stress and ε represents the elongation

Fig. 3 shows the SEM backscattered electron images of the Mg_69-xZn₂₇Ca₄Yx (x = 0, 1 and 2 at.%) alloys. There is no distinct contrast in the backscattered electron scanning images, which means that the Mg₆₉Zn₂₇Ca₄ alloy has a pure amorphous structure again ( Fig. 3(a)). However, the SEM images of the Y-doped Mg-Zn-Ca samples consist of several different regions ( Fig. 3(b) and (c)). The Mg₆₈Zn₂₇Ca₄Y₁ alloy consists of small dark areas surrounded by gray regions and scattered white dendrites, which are shaped like snowflakes. All these phases are fine and uniformly distributed on the Mg matrix. The microstructure and phase distribution exhibited by the Mg₆₇Zn₂₇Ca₄Y₂ alloy appear to be similar to Mg₆₈Zn₂₇Ca₄Y₁ alloy. However, the white snowflake phases are much larger in the Mg₆₇Zn₂₇Ca₄Y₂ alloy compared with the Mg₆₈Zn₂₇Ca₄Y₁ alloy.

Fig. 3

	Figure Option ViewDownloadNew Window

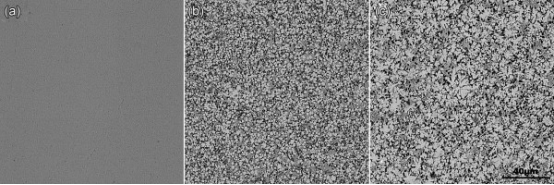

	Fig. 3 SEM images of the Mg69-xZn27Ca4Yx alloys: (a) x = 0, (b) x = 1, (c) x = 2 at.%.

To identify the composition of the crystalline phase in the different regions observed in the SEM images, energy dispersive spectrometry (EDS) spectrums were obtained from the Y-doped alloy. Table 2 summarizes the EDS results of the different regions of the Mg₆₈Zn₂₇Ca₄Y₁ alloy. The results show that the gray regions are rich in Mg, Zn, Ca and the atomic percentages are similar to that of the matrix of Mg₆₉Zn₂₇Ca₄ (56.51 at.% Mg, 3.36 at.% Ca, 40.13 at.% Zn), which means that the gray regions are the amorphous matrix. The white snowflake phases are composed of high Mg, high Ca but low Zn content. Also, much of Y could be found in this area. Based on the atomic weight, it can be assumed that the white snowflake phases correspond to the mixture of the Ca₂Mg₆Zn₃ phase and Mg₁₂YZn phase. The atomic percentages of Mg, Zn, Ca in dark areas are similar to that of the matrix. The difference is that a little of Y exists. It is suggested that this dark region is a transition zone between the matrix and the dendrites phase.

Table 2

Table 2

Table 2 EDS results for Mg68Zn27Ca4Y1 alloys Position Composition (at.%) Mg Ca Zn Y Dark region 58.01 4.68 36.23 1.08 Gray phase 53.85 3.45 42.7 - Snowflake phase 67.37 10.23 19.18 3.22

Table 2 EDS results for Mg68Zn27Ca4Y1 alloys

Fig. 4 shows the compressive stress-strain curves which shift apart from each other to avoid overlapping of the alloys. The results show that the Mg₆₉Zn₂₇Ca₄ glassy alloy has greater strength than the traditional crystalline Mg-4.0Zn-0.5Ca alloy (273 MPa)^[20]. The Mg₆₉Zn₂₇Ca₄ glassy alloy also exhibits linear elastic behavior and it only fails in the absence of macroscopic yielding and plastic strain. However, Y can significantly improve fracture strength. Fracture strength increases from 550 to 1012 MPa (80% increment) with the addition of 1 at.% Y, which is 4 times higher than that of traditional magnesium alloys and 26% higher than Mg-Zn-Ca metallic glass as reported by Li et al.^[11]. The Mg₆₈Zn₂₇Ca₄Y₁ alloy also exhibits excellent capacity for plastic strain, above 3.1%, which is 2.5 times higher than the capacity of Mg-Zn-Ca metallic glass^[11]. In a word, the Mg₆₈Zn₂₇Ca₄Y₁ alloy shows the best comprehensive mechanical properties in this experiment. The mechanical properties of these alloys are also listed in Table 1.

Fig. 4

	Figure Option ViewDownloadNew Window
	Fig. 4 Engineering strain-stress curves of the Mg69-xZn27Ca4Yx alloys: (a) x = 0, (b) x = 1, (c) x = 2 at.%.

A comparison of the polarization curves of the Y-doped Mg₆₉Zn₂₇Ca₄ alloy in SBF solution at 37 ° C is shown in Fig. 5. Generally, cathodic polarization curves can be assumed to represent the cathodic hydrogen evolution through water reduction, whereas the anodic polarization curves represent the dissolution of magnesium^[18]. The Mg₆₉Zn₂₇Ca₄ glassy alloy is spontaneously passivated at a passivation interval and a very low passivation current density, allowing the formation of a good passive film. For comparison, the ZK60 and pure Mg were also tested in the same condition. Although the passivation interval disappears, the Mg₆₈Zn₂₇Ca₄Y₁ and Mg₆₇Zn₂₇Ca₄Y₂ alloys still have much more noble corrosion potential (E_corr) and lower corrosion current density (i_corr) than the pure Mg and ZK60 alloys. The main parameters of the bio-corrosion resistance of these alloys are also summarized in Table 1. The corrosion current density (i_corr) of the Mg₆₉Zn₂₇Ca₄ glassy alloy is 10^-5.56 A/cm², which exhibits only 1/40 of pure Mg. Similar results were reported that an increase in the cooling rate could improve the corrosion resistance of the Mg_97.25Zn_0.75Y₂ alloy ^[27].

Fig. 5

	Figure Option ViewDownloadNew Window
	Fig. 5 Potentiodynamic polarization curves of pure Mg, ZK60, Mg69-xZn27Ca4Yx alloys (x = 0, 1, and 2 at.%) in SBF solutions.

The variation of hydrogen evolution volume as a function of immersion time is shown in Fig. 6. All the samples exhibit an increase in the volume of H₂ in the span of 45 h, which means an increment in hydrogen evolution rate^[24]. The hydrogen evolution volume of the Mg_69-xZn₂₇Ca₄Yx alloys and pure Mg could be ranked in an increasing series as follows: Mg₆₉Zn₂₇Ca₄ < Mg₆₈Zn₂₇Ca₄Y₁ < Mg₆₇Zn₂₇Ca₄Y₂ < pure Mg. It can be concluded that the Mg_69-xZn₂₇Ca₄Yx alloys have a much lower corrosion rate than pure Mg. The Mg₆₉Zn₂₇Ca₄ glassy alloy has the lowest corrosion rate due to its structural and chemical homogeneity and the absence of second crystal phases^{[9] and [11]}. The corrosion rate increases with the increment of Y content, which could be ascribed to the micro-galvanic corrosion caused by the Mg₁₂YZn and Ca₂Mg₆Zn₃ phases. The results of hydrogen evolution are in agreement with the polarization curves (Fig. 6).

Fig. 6

	Figure Option ViewDownloadNew Window

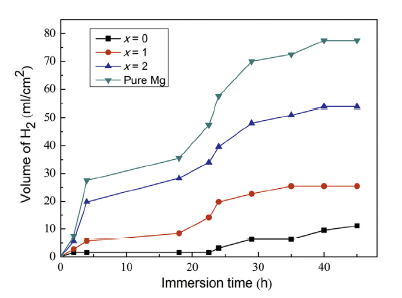

	Fig. 6 Hydrogen evolution volume of Mg69-xZn27Ca4Yx (x = 0, 1, and 2 at.%) alloys and pure Mg in SBF at 37 ° C.

The surface morphologies of the tested materials immersed in SBF at 37 ° C after 85 h are shown in Fig. 7. It is visible that the Mg₆₉Zn₂₇Ca₄ alloy maintains the integrity of surface. Although the Y-bearing alloys exhibit a cracked morphology, they are still characterized by a relatively higher integrity compared with pure Mg. The large holes and the small amount of corrosion products indicate that pure Mg is corroded severely mainly through pitting corrosion, and there is not protective film to cover its matrix (Fig. 7(d)). EDS results show that the corrosion products on the matrix of the Mg₆₉Zn₂₇Ca₄ alloy are mainly rich in O, Mg, and Zn (indicated by arrow in Fig. 7(a)). Zn²⁺ will release during the corrosion process resulting in the formation of Zn(OH)₂. Zn(OH)₂ has lower solubility compared with Mg(OH)₂ indicating a better protective effect than Mg(OH)₂^[9]. This finding suggests that the co-existence of Zn(OH)₂ and Mg(OH)₂ provides a uniform protective film on Mg₆₉Zn₂₇Ca₄ alloy^[28]. In the case of Mg₆₈Zn₂₇Ca₄Y₁ alloy, other elements such as P and Ca are on the matrix (indicated by arrow in Fig. 7(b)). It suggests that Mg and Ca containing phosphates form on the surface of Mg₆₈Zn₂₇Ca₄Y₁ alloy. Magnesium phosphate (Mg₃(PO₄)₂) compound was reported to form in SBF^[29]. The ratio of Ca to P (Ca/P) was approximately 0.53, which was a little lower than 0.75 [Mg₃Ca₃(PO₄)₄].

Fig. 7

	Figure Option ViewDownloadNew Window

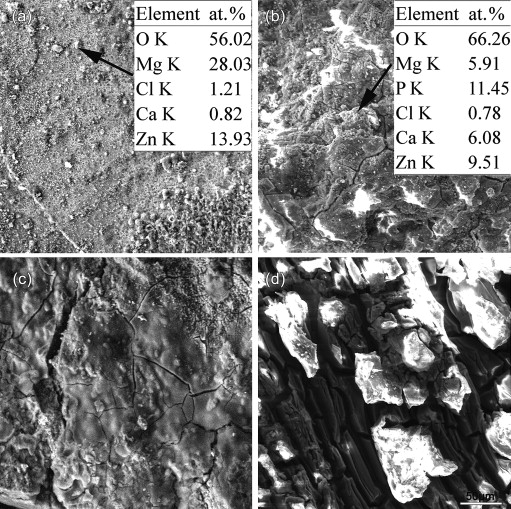

	Fig. 7 Surface morphologies of the samples after 85 h immersion in SBF: (a) Mg69Zn27Ca4, (b) Mg68Zn27Ca4Y1, (c) Mg67Zn27Ca4Y2, (d) pure Mg.

Fig. 8 illustrates the RGR of osteoblasts after 3 days incubation. There is no significant difference between the RGR in pure Mg extracts and that in the negative control. Moreover, the bulk metallic glass composites present higher RGR of cells than the control, indicating a better biocompatibility. According to ISO 10993-5: 2009^[30], the cytotoxicity in the extracts of these bulk metallic glass composites was grade 0-1. In addition, Mg₆₈Zn₂₇Ca₄Y₁ alloy exhibited the highest absorbance.

Fig. 8

	Figure Option ViewDownloadNew Window
	Fig. 8 RGR of osteoblasts after 3 days incubation with extracts from different substrates. Error bars indicate mean ± SD for n = 6.

With the addition of Y, the volume fractions of the crystalline phases increased and the single amorphous phase was destroyed. It means that Y could ruin GFA of Mg-Zn-Ca metallic glass.

The results of SEM and EDS (Fig. 3 and Table 2) show that the snowflake phases are composed of the Mg₁₂YZn and Ca₂Mg₆Zn₃ phases. Ca₂Mg₆Zn₃ is a common strengthening phase in as-cast Mg-Zn-Ca alloy. It is trigonal with the lattice parameters of a = 0.97 nm, c = 1.0 nm ^[31]. Levi et al. ^[32] reported that Mg-Zn-Ca alloy could be hardening with the appearance of Ca₂Mg₆Zn₃ phase, which is still stable at a relative low temperature. Mg₁₂YZn phase is very attractive for its special crystal structure (long-period stacking ordered structure) and excellent properties in recent years ^{[33], [34], [35], [36] and [37]}. Xiao et al. ^[34] and Hagihara et al. ^[35] showed that the Mg₁₂YZn phase could improve the mechanical properties of the Mg₈₈Zn₅Y₇ alloy, for its elastic modulus is significantly higher than the metallic matrix. Due to the high Young's modulus, Mg₁₂YZn could bear more load transfer during plastic deformation. The two-phase material can be regarded as a composite material, where fine Mg₁₂YZn phase serves as fiber to reinforce the metallic matrix ^[36]. The excellent comprehensive mechanical properties of Mg₆₈Zn₂₇Ca₄Y₁ alloy could be attributed to the effective strengthening phases, namely Ca₂Mg₆Zn₃ phase and Mg₁₂YZn phase dispersing on the surface uniformly.

With the addition of 2 at.% Y, the compressive strength decreased. However, the Mg₆₇Zn₂₇Ca₄Y₂ alloy still exhibited higher strength (770 MPa) than the Mg₆₉Zn₂₇Ca₄ glassy alloy (550 MPa) and obvious plastic strain. The decrease in compressive strength could be attributed to the second phases, which became coarse in Mg₆₇Zn₂₇Ca₄Y₂. The stress concentration could occur due to the larger volume of the second phases. Therefore, the interface between the matrix and the second phases would bear uneven distribution of loading, where the initial cracks would occur^[38]. In addition, the Young's modulus of Mg₆₉Zn₂₇Ca₄, Mg₆₈Zn₂₇Ca₄Y₁, and Mg₆₇Zn₂₇Ca₄Y₂ alloys is 51, 57 and 53 GPa, respectively, which are significantly close to that of the cortical bone (10-40 GPa). Compared with the medical stainless steel (200 GPa), Mg-Zn-Ca-Y alloys could greatly decrease the “ stress shielding” phenomenon.

Numerous reactions took place during magnesium dissolution. These reactions can be simply illustrated as follows^[29]:

equation(1)

anodic reaction: Mg → Mg⁺ + e

equation(2)

Mg⁺ → Mg²⁺ + e

equation(3)

cathodic reaction: 2H₂O + 2e → 2OH^- + H₂

equation(4)

chemical reaction (NDE): Mg⁺ + H₂O → Mg²⁺ + OH^- + 1/2H₂

equation(5)

formation of corrosion products: Mg²⁺ + OH^- → Mg(OH)₂

It is suggested that hydrogen evolution could occur through both the cathodic water reduction and the chemical reaction between water and the dissolved monovalent Mg⁺ ions. The cathodic current density of the Y-bearing alloys was higher than that of pure Mg in the cathodic region (Fig. 5), which signified that the cathodic reactions (Eq. (3)) were more active for the Y-bearing alloys due to the cathodic effect of Mg₁₂YZn and Ca₂Mg₆Zn₃ phases. Higher cathodic current density implies higher cathodic hydrogen evolution rate of Y-bearing alloys. However, the total hydrogen evolution rate of Y-bearing alloys was lower than that of pure Mg (Fig. 6) because of the anode hydrogen evolution rate (Eq. (4)), which was much lower due to negative difference effect (NDE)^[28].

Once corrosion products Mg(OH)₂ formed, Cl^- as aggressive ions would transform Mg(OH)₂ into soluble MgCl₂^[18]. SBF solution also contained ₄PO^3-PO43-, Ca²⁺ and so on. Thus, dissolved Mg²⁺ would combine ₄PO^3-PO43- and Ca²⁺ to form magnesium-containing calcium phosphates according to the following reaction^[39]:

equation(6)

-₄HPO+Mg²⁺+Ca²⁺+OH^-→ xMgyCaz₍PO₄₎HPO4-+Mg2++Ca2++OH-→ MgxCay(PO4)z

It is true that magnesium-containing calcium phosphates formed on the surface of Mg₆₈Zn₂₇Ca₄Y₁ alloy rather than on Mg₆₉Zn₂₇Ca alloy according to EDS results (Fig. 7). Researches^{[39] and [40]} showed that magnesium-containing calcium phosphates were better than HA (Ca₁₀(PO₄)₆(OH)₂) in terms of promoting osteoinductivity and osteoconductivity. It can be concluded that the addition of Y facilitated the formation of Mg and Ca containing phosphates, predicting good biocompatibility of Y-bearing alloys.

The in vitro cytotoxicity of Y-bearing alloys was grade 0-1, indicating that the Y-doped Mg-Zn-Ca metallic glass composites were safe as biomaterials. The cells presented the highest growth rate in Mg₆₈Zn₂₇Ca₄Y₁ alloy extraction medium. Both Mg²⁺ and Ca²⁺ could enhance the cell attachment and proliferation ^[18]. Gu et al. ^[25] found that Mg-1Y alloy extracts showed decreased cell viability for L-929, NIH3T3, ECV304 and VSMC cells at concentration of 2.3 ± 0.7 μ mol/L for Y. In our study, Y promoted the formation of magnesium-containing calcium phosphates. Xu et al. ^[41] reported that calcium phosphate coating significantly improved the surface cytocompatibility of magnesium. Thus, Mg₆₈Zn₂₇Ca₄Y₁ alloy which exhibited the highest RGR ( Fig. 8) showed good biocompatibility.
